Mainboard|MSI|Intel B860 Express|LGA1851|ATX|Memory DDR5|Memory slots 4|2xPCI-Express 4.0 1x|1xPCI-Express 4.0 4x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|8xUSB 2.0|2xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|1xThunderbolt|PROB860-PWIFI

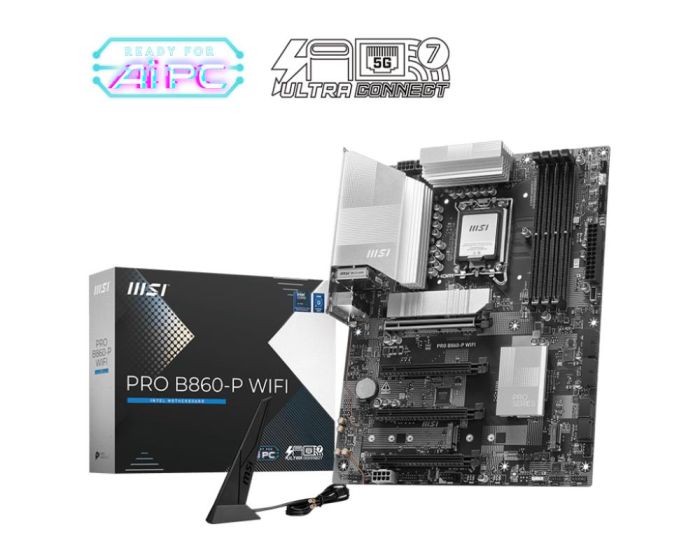

PRO B860-P WIFI

PRO B860-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors. - Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
- Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
- Ultra Connect: Thunderbolt™ 4 port, 5G LAN with Intel Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

Description

PRO B860-P WIFI

PRO B860-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors. - Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
- Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
- Ultra Connect: Thunderbolt™ 4 port, 5G LAN with Intel Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

Vendor Homepage

www.msi.com/Motherboard/PRO-B860-P-WIFI

Model

PRO B860-P WIFI

Chipset

Intel B860 Express

Socket

LGA1851

Form Factor

ATX

Memory type

DDR5

Frequency speed

4800/5600/6400/7200/8800 MHz

Memory slots

4

M.2

3

PCI-Express 4.0 1x

2

PCI-Express 4.0 4x

1

PCI-Express 5.0 16x

1

Audio port

3

DisplayPort

1

HDMI

1

RJ45

1

Thunderbolt

Yes

USB 2.0

Yes

USB 3.2

Yes

USB-C

Yes

Bluetooth

Yes

SATA

Yes

WiFi

Yes

Integrated video

Depending on CPU

Integrated LAN

5 Gigabit

Integrated audio

Realtek ALC897

RAID

SATA 0, 1, 5, 10

TPM

Header

Units per Shipping Box

10

Shipping Box Depth

56 cm

Shipping Box Height

38 cm

Shipping Box Weight

16.91 kg

Shipping Box Width

39 cm

Unit Calculated Volume

0.008299 cubm

Product Net Weight

1 kg

Unit Calculated Weight

1.69 kg

Unit Box Width

0.27

Unit Box Length

0.34

Unit Box Height

0.07

Full Description Line

Intel B860 Express|LGA1851|ATX|DDR5|8800/7200/6400/5600/4800 MHz|Memory slots 4|2xPCI-Express 4.0 1x|1xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|8xUSB 2.0|2xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|1xThunderbolt|SATA|USB-C|USB 2.0|USB 3.2|Thunderbolt|Bluetooth|WiFi|Video Depending on CPU|LAN 5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10|TPM Header

Category Code

MBI
