Mainboard|MSI|Intel Z890|LGA1851|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 1x|2xPCI-Express 4.0 4x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|2xUSB 3.0|1xUSB-C|1xUSB-C w/Thunderbolt|3xAudio port|PROZ890-SWIFI

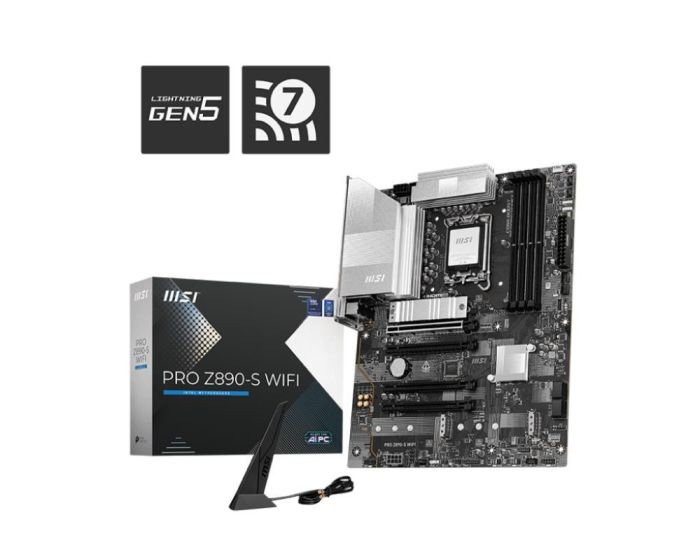

PRO Z890-S WIFI - Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 8600+ MT/s (OC)
- Enhanced Power Design: 12+1+1+1 Duet Rail Power System with P-PAK , dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- Thunderbolt™ 4: brings Thunderbolt to USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chain, Multi-Port Accessory Architecture and USB 4.0 compliant
- 2.5G LAN with Intel Wi-Fi 7 Solution: upgraded network solution for professional and multimedia use, delivering secure, stable, and high-speed networking
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

Description

PRO Z890-S WIFI - Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 8600+ MT/s (OC)
- Enhanced Power Design: 12+1+1+1 Duet Rail Power System with P-PAK , dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- Thunderbolt™ 4: brings Thunderbolt to USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chain, Multi-Port Accessory Architecture and USB 4.0 compliant
- 2.5G LAN with Intel Wi-Fi 7 Solution: upgraded network solution for professional and multimedia use, delivering secure, stable, and high-speed networking
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

Vendor Homepage

www.msi.com/Motherboard/PRO-Z890-S-WIFI

Model

PRO Z890-S WIFI

Chipset

Intel Z890

Socket

LGA1851

Form Factor

ATX

Memory type

DDR5

Frequency speed

4800/7200/8600 MHz

Memory slots

4

M.2

3

PCI-Express 3.0 1x

1

PCI-Express 4.0 4x

2

PCI-Express 5.0 16x

1

Audio port

3

DisplayPort

1

HDMI

1

USB 2.0

Yes

USB 3.0

Yes

USB-C

Yes

USB-C w/Thunderbolt

1

Bluetooth

Yes

SATA

Yes

Thunderbolt

Yes

WiFi

Yes

Integrated video

Depending on CPU

Integrated LAN

2.5 Gigabit

Integrated audio

Realtek ALC897

RAID

SATA 0, 1, 5, 10; NVMe 0, 1, 5

TPM

Header

Units per Shipping Box

5

Shipping Box Depth

38 cm

Shipping Box Height

37 cm

Shipping Box Weight

9.1 kg

Shipping Box Width

28 cm

Unit Calculated Volume

0.0078736 cubm

Product Net Weight

0.8 kg

Unit Calculated Weight

1.82 kg

Unit Box Width

0.27

Unit Box Length

0.345

Unit Box Height

0.072

Full Description Line

Intel Z890|LGA1851|ATX|DDR5|8600/7200/4800 MHz|Memory slots 4|1xPCI-Express 3.0 1x|2xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|2xUSB 3.0|1xUSB-C|1xUSB-C w/Thunderbolt|3xAudio port|SATA|USB-C|USB 2.0|USB 3.0|Thunderbolt|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5|TPM Header

Category Code

MBI
