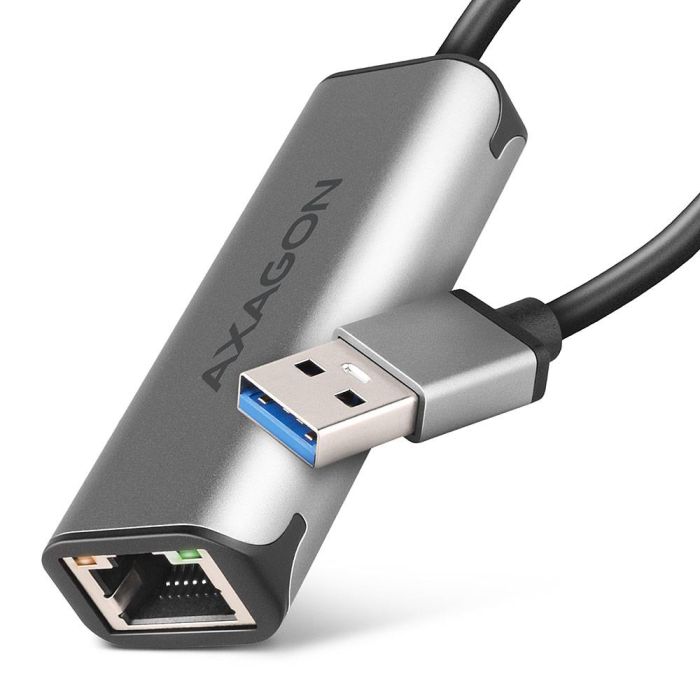

NET ADAPTER USB3.2 2.5G/ADE-25R AXAGON

ADE-25R SuperSpeed USB-A 2.5 gigabit ethernet

Compact aluminum USB-A 3.2 Gen 1 2.5 Gigabit Ethernet 10/100/1000/2500 Mbit adapter with automatic installation.


The external network card AXAGON ADE-25R easily converts USB-A 3.2 Gen 1 (USB 3.0) port to 2.5 Gigabit Ethernet port. It is compatible with 10/100/1000/2500 Mbit/s transfer speeds. The network adapter with 2.5 Gb/s speed expands the computer with a very fast and stable network connection, adds the missing RJ-45 network connector, adds another network card, or replaces the original non-functional network connection.

In addition to 2.5 gigabit throughput, the LAN adapter offers a wide range of features, such as IPv4/IPv6 checksum to reduce CPU load by checksums, the crossover detection and auto-correction, TCP large send offload, support for various modes of the Wake-on-LAN feature, the work with virtual LAN (VLAN) and advanced Power Management features. The advantage of the IEEE 802.3bz standard is that standard Cat 5e and Cat 6 Ethernet cables up to 100 m long can be used for 2.5 Gb/s speed.

The metal adapter cover is made of aluminum and provides perfect mechanical protection and excellent heat dissipation. Thanks to its compact dimensions and minimal weight, it is an ideal accessory for laptops. The support for current versions of Windows, macOS and Linux operating systems allows it to be used for any desktop, laptop or ultrabook.

In modern operating systems from Windows 8.1 above, the adapter allows easy automatic installation without the need for an Internet connection.

Description

ADE-25R SuperSpeed USB-A 2.5 gigabit ethernet

Compact aluminum USB-A 3.2 Gen 1 2.5 Gigabit Ethernet 10/100/1000/2500 Mbit adapter with automatic installation.


The external network card AXAGON ADE-25R easily converts USB-A 3.2 Gen 1 (USB 3.0) port to 2.5 Gigabit Ethernet port. It is compatible with 10/100/1000/2500 Mbit/s transfer speeds. The network adapter with 2.5 Gb/s speed expands the computer with a very fast and stable network connection, adds the missing RJ-45 network connector, adds another network card, or replaces the original non-functional network connection.

In addition to 2.5 gigabit throughput, the LAN adapter offers a wide range of features, such as IPv4/IPv6 checksum to reduce CPU load by checksums, the crossover detection and auto-correction, TCP large send offload, support for various modes of the Wake-on-LAN feature, the work with virtual LAN (VLAN) and advanced Power Management features. The advantage of the IEEE 802.3bz standard is that standard Cat 5e and Cat 6 Ethernet cables up to 100 m long can be used for 2.5 Gb/s speed.

The metal adapter cover is made of aluminum and provides perfect mechanical protection and excellent heat dissipation. Thanks to its compact dimensions and minimal weight, it is an ideal accessory for laptops. The support for current versions of Windows, macOS and Linux operating systems allows it to be used for any desktop, laptop or ultrabook.

In modern operating systems from Windows 8.1 above, the adapter allows easy automatic installation without the need for an Internet connection.

Vendor Homepage

www.axagon.eu/en/produkty/ade-25r?ami=207

Model

ADE-25R

Media

10Base-T / 100Base-TX / 1000Base-T

2.5GbE

1

RJ45

1

USB 3.2

1

Linux

Yes

MacOS

Yes

Windows 10

Yes

Windows 7

Yes

Windows 8

Yes

Activity

Yes

Link

Yes

Included Accessories

- USB - Ethernet adapter- installation guide

Depth

230 mm

Height

380 mm

Width

510 mm

Unit Calculated Volume

0.00054 cubm

Product Net Weight

0.026 kg

Unit Calculated Weight

0.06 kg

Full Description Line

10Base-T / 100Base-TX / 1000Base-T|1x2.5GbE|1xUSB 3.2|1xRJ45|Windows 10|Windows 8|Windows 7|Linux|MacOS|Activity|Link|Included Accessories - USB - Ethernet adapter- installation guide

Category Code

NIC
