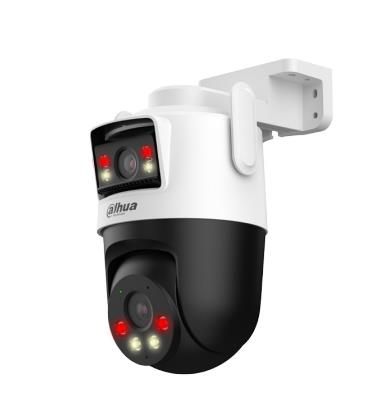

NET CAMERA 2+2MP PT DOME/SDT2A200-2F-NB-A-PV DAHUA

Designed with more lens than the conventional PT camera, the SDT2A series captures an expansive view, as it independently monitors scenes from different angles. It has a unique design that makes it costeffective, greatly reducing the installation cost of security systems. It supports two-way talk, allowing you to communicate with people in front of the camera in real time. It also records videos in full color, and uses Smart Dual Light to help produce vivid images, making it easy to obtain information on events, and reduce light pollution.

1920 × 1080, Lens fixed/PT 4 mm/ 4 mm, view 85.7°/ 85.7°, IR/white light up to 30m, built-in Mic, built-in speaker, Micro SD card max. 256 GB, 12 VDC/PoE, AI Human Detection, AI Vehicle Detection, ICR, IP66 indoor/outdoor use.

Description

Designed with more lens than the conventional PT camera, the SDT2A series captures an expansive view, as it independently monitors scenes from different angles. It has a unique design that makes it costeffective, greatly reducing the installation cost of security systems. It supports two-way talk, allowing you to communicate with people in front of the camera in real time. It also records videos in full color, and uses Smart Dual Light to help produce vivid images, making it easy to obtain information on events, and reduce light pollution.

1920 × 1080, Lens fixed/PT 4 mm/ 4 mm, view 85.7°/ 85.7°, IR/white light up to 30m, built-in Mic, built-in speaker, Micro SD card max. 256 GB, 12 VDC/PoE, AI Human Detection, AI Vehicle Detection, ICR, IP66 indoor/outdoor use.

Vendor Homepage

www.dahuasecurity.com

Model

SDT2A200-2F-NB-A-PV

Camera design

Dome

Network Camera Type

Fixed Dome/Outdoor

Pixel Resolution

2 Mega Pixel

Focal Length

4 mm

IR Illumination

Yes

Sensor size

1/2.8 CMOS

Microphone

Built-in

Min. Illumination

0.05 Lux

MicroSD Card Slot

1

RJ45

1

Supports card capacities up to

256GB

Power options

PoE

Power supply requirements

12 VDC/1.5 A ± 10%

Power consumption

4 Watts

Environment

Outdoor

Operating temperature range

–20 °C to +50 °C

Colour

White

Dimensions

110.0 mm × 159.4 mm × 210.1 mm

Units per Shipping Box

1

Shipping Box Depth

18.5 cm

Shipping Box Height

23.5 cm

Shipping Box Weight

1 kg

Shipping Box Width

13.5 cm

Unit Calculated Volume

0.005869 cubm

Product Net Weight

1 kg

Unit Calculated Weight

1 kg

Unit Box Width

0.135

Unit Box Length

0.185

Unit Box Height

0.235

Full Description Line

Type Fixed Dome/Outdoor|Pixel Resolution 2 Mega Pixel|Focal Length 4 mm|IR Illumination|Sensor size 1/2.8 CMOS|Microphone Built-in|Min. Illumination 0.05 Lux|1xMicroSD Card Slot|1xRJ45|Supports card capacities up to 256GB|Power options PoE|Power supply requirements 12 VDC/1.5 A ± 10%|Environment Outdoor|Operating temperature range –20 °C to +50 °C|Colour White|Dimensions 110.0 mm × 159.4 mm × 210.1 mm

Category Code

FNC
