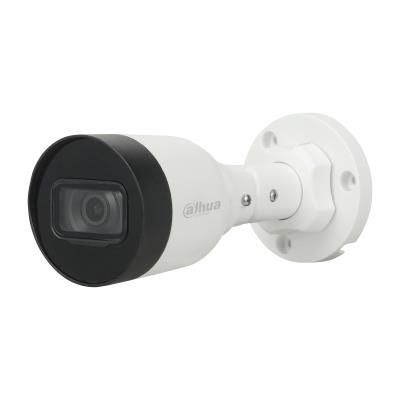

NET CAMERA 2MP IR BULLET/IPC-HFW1230DS1-0280B-S5 DAHUA

IPC-HFW1230DS1-S5

2MP Entry IR Fixed-focal Bullet Netwok Camera

> 2MP, 1/2.8 CMOS image sensor, low illuminance and high definition image
> Outputs max. 2MP (1920 × 1080) @25/30 fps.
> H.265 codec, high compression rate, and ultra-low bit rate.
> Built-in IR LED, and the max. IR distance is 30 m.
> RoI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
> Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking,applicable to various monitoring scenes.
> Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access.
> 12V DC power supply.
> IP67 protection.

Description

IPC-HFW1230DS1-S5

2MP Entry IR Fixed-focal Bullet Netwok Camera

> 2MP, 1/2.8 CMOS image sensor, low illuminance and high definition image
> Outputs max. 2MP (1920 × 1080) @25/30 fps.
> H.265 codec, high compression rate, and ultra-low bit rate.
> Built-in IR LED, and the max. IR distance is 30 m.
> RoI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
> Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking,applicable to various monitoring scenes.
> Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access.
> 12V DC power supply.
> IP67 protection.

Vendor Homepage

www.dahuasecurity.com/br/products/All-Products/Network-Cameras/Entry-Series/2MP/IPC-HFW1230DS1-S5

Model

IPC-HFW1230DS1-S5

Camera design

Bullet

Network Camera Type

HDTV/Megapixel/Outdoor

Pixel Resolution

2 Mega Pixel

Focal Length

2.8 mm; 3.6 mm

IR Illumination

Yes

Sensor size

1/2.8

Lens Mount

M12

Min. Illumination

0.001 Lux

Effective pixels

1920 (H) × 1080 (V)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

RJ45

1

Power options

12V

Power supply requirements

12V DC

Power consumption

1.4 Watts

Operating temperature range

–40 °C to +60 °C

Colour

White

Dimensions

162.6 mm × Φ70 mm

Units per Shipping Box

20

Shipping Box Depth

55.5 cm

Shipping Box Height

22.2 cm

Shipping Box Weight

7.65 kg

Shipping Box Width

43 cm

Unit Calculated Volume

0.002649 cubm

Product Net Weight

0.22 kg

Unit Calculated Weight

0.383 kg

Unit Box Width

0.107

Unit Box Length

0.205

Unit Box Height

0.098

Full Description Line

Type HDTV/Megapixel/Outdoor|Pixel Resolution 2 Mega Pixel|Focal Length 2.8 mm; 3.6 mm|IR Illumination|Sensor size 1/2.8|Lens Mount M12|Min. Illumination 0.001 Lux|Effective pixels 1920 (H) × 1080 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xRJ45|Power options 12V|Power supply requirements 12V DC|Operating temperature range –40 °C to +60 °C|Colour White|Dimensions 162.6 mm × Φ70 mm

Category Code

FNC
