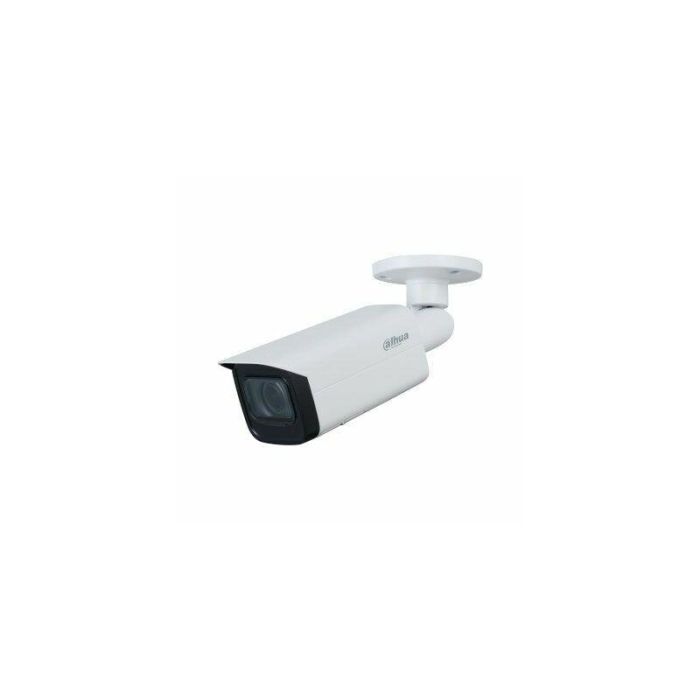

NET CAMERA 2MP IR BULLET/IPC-HFW1230T-ZS-2812-S5 DAHUA

With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry series network camera is applicable to small and medium-sized scenes, such as homes/residences, small-sized retail stores, and other small and medium-sized enterprises.


1/2.7” 2Megapixel progresive CMOS, 1920 x 1080 @ 30FPS max

Minimum illumination: 0.008 Lux @ F1.7

True Day/Night (ICR), BLC/HLC/DWDR/3D DNR

2.8 mm - 12 mm motorized varifocal lens (106° - 33° HFOV)

Up to 50 meters IR Illumination

H.265; H.264; H.264H; H.264B; MJPEG encoding, ONVIF (Profile S); CGI; Genetec; P2P

Bullet type metal case, IP67, outdoor/indoor use, -30°C~+60°C, PoE / 12VDC power, 6.2W max

Free IP monitoring software available

Description

With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry series network camera is applicable to small and medium-sized scenes, such as homes/residences, small-sized retail stores, and other small and medium-sized enterprises.


1/2.7” 2Megapixel progresive CMOS, 1920 x 1080 @ 30FPS max

Minimum illumination: 0.008 Lux @ F1.7

True Day/Night (ICR), BLC/HLC/DWDR/3D DNR

2.8 mm - 12 mm motorized varifocal lens (106° - 33° HFOV)

Up to 50 meters IR Illumination

H.265; H.264; H.264H; H.264B; MJPEG encoding, ONVIF (Profile S); CGI; Genetec; P2P

Bullet type metal case, IP67, outdoor/indoor use, -30°C~+60°C, PoE / 12VDC power, 6.2W max

Free IP monitoring software available

Vendor Homepage

material.dahuasecurity.com/uploads/soft/20221222/DH-IPC-HFW1230T-ZS-S5_datasheet_20210705.pdf

Camera design

Bullet

Network Camera Type

Fixed/HDTV/Megapixel/Outdoor

Pixel Resolution

2 Mega Pixel

Focal Length

2.8 mm-12 mm

Min. Illumination

0.0005 Lux

Effective pixels

1920 x 1080

Power options

12V

Environment

Outdoor

Units per Shipping Box

1

Shipping Box Depth

31 cm

Shipping Box Height

16 cm

Shipping Box Weight

1.08 kg

Shipping Box Width

14.5 cm

Unit Calculated Volume

0.007192 cubm

Product Net Weight

0.86 kg

Unit Calculated Weight

1.08 kg

Unit Box Width

0.145

Unit Box Length

0.31

Unit Box Height

0.16

Full Description Line

Type Fixed/HDTV/Megapixel/Outdoor|Pixel Resolution 2 Mega Pixel|Focal Length 2.8 mm-12 mm|Min. Illumination 0.0005 Lux|Effective pixels 1920 x 1080|Power options 12V|Environment Outdoor

Category Code

FNC
