NET CAMERA 4MP BULLET/IPC-HFW2449T-ZAS-IL27135 DAHUA

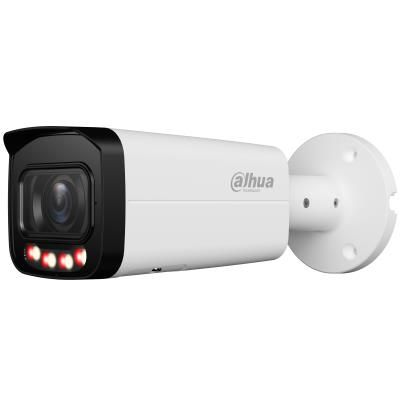

4MP Smart Dual Light Vari-focal Bullet WizSense Network Camera
>4-MP 1/2.9 CMOS image sensor, low luminance, and high definition image.
>Outputs max. 4 MP (2688 × 1520)@20 fps, and supports 2560 ×1440 (2560 × 1440)@25/30 fps.
>H.265 codec, high compression rate, ultra-low bit rate.
>Built-in multi-core light, the max. IR distance is 60 m and the max. warm light distance is 60 m.
>ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
>Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
>Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
>Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
>Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in Mic.
>12 VDC/PoE power supply, easy for installation.
>IP67, IK10 (optional) protection.
>SMD Plus.

Description

4MP Smart Dual Light Vari-focal Bullet WizSense Network Camera
>4-MP 1/2.9 CMOS image sensor, low luminance, and high definition image.
>Outputs max. 4 MP (2688 × 1520)@20 fps, and supports 2560 ×1440 (2560 × 1440)@25/30 fps.
>H.265 codec, high compression rate, ultra-low bit rate.
>Built-in multi-core light, the max. IR distance is 60 m and the max. warm light distance is 60 m.
>ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
>Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
>Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
>Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
>Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in Mic.
>12 VDC/PoE power supply, easy for installation.
>IP67, IK10 (optional) protection.
>SMD Plus.

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Light/IPC-HFW2449T-ZAS-IL

Model

IPC-HFW2449T-ZAS-IL-27135

Camera design

Bullet

Network Camera Type

HDTV/Megapixel/Outdoor

Pixel Resolution

4 Mega Pixel

IR Illumination

Yes

Sensor size

1/2.9

Microphone

Built-in

Lens Mount

M14

Min. Illumination

0.0006 Lux

Effective pixels

2688 (H) × 1520 (V)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Alarm In

1

Alarm Out

1

Audio-In

1

Audio-Out

1

RJ45

1

Supports card capacities up to

256GB

Power supply requirements

12 VDC; PoE (802.3af)

Power consumption

12.7 Watts

Environment

Outdoor

Dimensions

238.5 × 90.7 × 90.7 mm

Units per Shipping Box

1

Shipping Box Depth

29 cm

Shipping Box Height

12 cm

Shipping Box Weight

0.94 kg

Shipping Box Width

12 cm

Unit Calculated Volume

0.004176 cubm

Product Net Weight

0.76 kg

Unit Calculated Weight

0.94 kg

Unit Box Width

0.12

Unit Box Length

0.29

Unit Box Height

0.12

Full Description Line

Type HDTV/Megapixel/Outdoor|Pixel Resolution 4 Mega Pixel|IR Illumination|Sensor size 1/2.9|Microphone Built-in|Lens Mount M14|Min. Illumination 0.0006 Lux|Effective pixels 2688 (H) × 1520 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power supply requirements 12 VDC; PoE (802.3af)|Environment Outdoor|Dimensions 238.5 × 90.7 × 90.7 mm
