NET CAMERA 4MP EYEBALL/IPC-HDW2449T-ZS-IL-27135 DAHUA

IPC-HDW2449T-ZS-IL

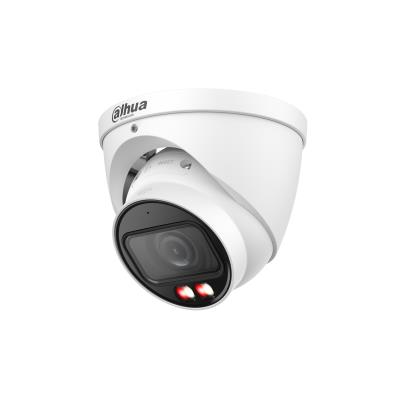

4MP Smart Dual Light Vari-focal Eyeball WizSense Network Camera

>4-MP 1/2.9 CMOS image sensor, low luminance, and high definition image.
>Outputs max. 4 MP (2688 × 1520)@20 fps, and supports 2560 ×1440 (2560 × 1440)@25/30 fps.
>H.265 codec, high compression rate, ultra-low bit rate.
>Built-in multi-core light, the max. IR distance is 40 m and the max. warm light distance is 40 m.
>ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
>Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
>Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
>Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
>Supports max. 256 G Micro SD card; built in Mic.
>12 VDC/PoE power supply, easy for installation.
>IP67 protection.
>SMD Plus.

Description

IPC-HDW2449T-ZS-IL

4MP Smart Dual Light Vari-focal Eyeball WizSense Network Camera

>4-MP 1/2.9 CMOS image sensor, low luminance, and high definition image.
>Outputs max. 4 MP (2688 × 1520)@20 fps, and supports 2560 ×1440 (2560 × 1440)@25/30 fps.
>H.265 codec, high compression rate, ultra-low bit rate.
>Built-in multi-core light, the max. IR distance is 40 m and the max. warm light distance is 40 m.
>ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
>Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
>Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
>Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
>Supports max. 256 G Micro SD card; built in Mic.
>12 VDC/PoE power supply, easy for installation.
>IP67 protection.
>SMD Plus.

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Light/IPC-HDW2449T-ZS-IL

Model

IPC-HDW2449T-ZS-IL-27135

Camera design

Eyeball

Network Camera Type

Fixed/Outdoor

Pixel Resolution

4 Mega Pixel

Focal Length

2.7 mm–13.5 mm

IR Illumination

Yes

Sensor size

1/2.9 CMOS

Microphone

Built-in

Min. Illumination

0.006 Lux

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

RJ45

1

Power options

12V/PoE

Power supply requirements

Basic: 2.3 W (12 VDC), 2.8 W (PoE);Max.: 7.8 W (12 VDC), 9.3 W (PoE) (H.265 + intelligence on+ WDR + warm light intensity)

Power consumption

2.3 Watts

Operating temperature range

–30 °C to +60 °C

Dimensions

108.3 mm × Φ122 mm

Units per Shipping Box

1

Shipping Box Depth

15.5 cm

Shipping Box Height

13.5 cm

Shipping Box Weight

0.86 kg

Shipping Box Width

15.5 cm

Unit Calculated Volume

0.003243 cubm

Product Net Weight

0.69 kg

Unit Calculated Weight

0.86 kg

Unit Box Width

0.155

Unit Box Length

0.155

Unit Box Height

0.135

Full Description Line

Type Fixed/Outdoor|Pixel Resolution 4 Mega Pixel|Focal Length 2.7 mm–13.5 mm|IR Illumination|Sensor size 1/2.9 CMOS|Microphone Built-in|Min. Illumination 0.006 Lux|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xRJ45|Power options PoE/12V|Power supply requirements Basic: 2.3 W (12 VDC), 2.8 W (PoE);Max.: 7.8 W (12 VDC), 9.3 W (PoE) (H.265 + intelligence on+ WDR + warm light intensity)|Operating temperature range –30 °C to +60 °C|Dimensions 108.3 mm × Φ122 mm

Category Code

FNC
