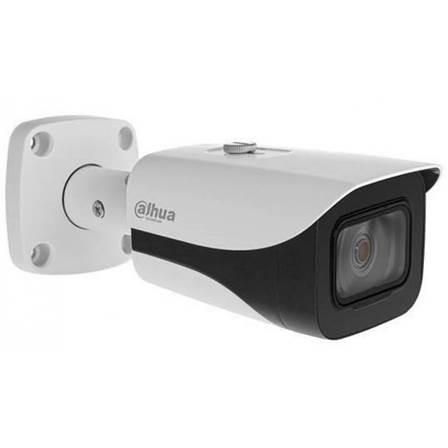

NET CAMERA 4MP IR BULLET/IPC-HFW5442E-ZE-2712-S3 DAHUA

- 1/1.8” 4 Megapixel progressive scan CMOS, 2688 × 1520 @30FPS
- Minimum illumination: 0.0007 lux @ F1.6 (Color, 30 IRE); 0.0004 lux @ F1.6 (B/W, 30 IRE); 0 lux (Illuminator on)
- True Day/Night with ICR Filter, BLC / HLC / True WDR (140dB), 3D DNR, Defog
- 2.7-12 mm varifocal lens (115°–47°)
- Up to 60 meters Smart IR Illumination
- H.265; H.264; H.264H; H.264B; MJPEG, ONVIF (Profile S/Profile G/Profile T); CGI
- Built-in MIC, Micro SD: Max 512GB, 1/1 Audio I/O, 2/1 Alarm I/O
- With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
- Bullet design, metal shell, IP67, IK10, -30°C~+60°C
- Power ePoE / PoE / 12VDC power, 9.8W max
- Free IP monitoring software available

Description

- 1/1.8” 4 Megapixel progressive scan CMOS, 2688 × 1520 @30FPS
- Minimum illumination: 0.0007 lux @ F1.6 (Color, 30 IRE); 0.0004 lux @ F1.6 (B/W, 30 IRE); 0 lux (Illuminator on)
- True Day/Night with ICR Filter, BLC / HLC / True WDR (140dB), 3D DNR, Defog
- 2.7-12 mm varifocal lens (115°–47°)
- Up to 60 meters Smart IR Illumination
- H.265; H.264; H.264H; H.264B; MJPEG, ONVIF (Profile S/Profile G/Profile T); CGI
- Built-in MIC, Micro SD: Max 512GB, 1/1 Audio I/O, 2/1 Alarm I/O
- With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
- Bullet design, metal shell, IP67, IK10, -30°C~+60°C
- Power ePoE / PoE / 12VDC power, 9.8W max
- Free IP monitoring software available

Vendor Homepage

www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizMind-S-Series/4MP/IPC-HFW5442E-ZE-S3=S3

Model

IPC-HFW5442E-ZE-2712-S3

Camera design

Bullet

Network Camera Type

Outdoor

Pixel Resolution

4 Mega Pixel

Focal Length

2.7-12 mm

IR Illumination

Yes

Sensor size

1/1.8 CMOS

Microphone

Built-in

Alarm In

2

Alarm Out

1

Audio-In

1

Audio-Out

1

RJ45

1

Supports card capacities up to

512GB

Power options

12V/PoE

Power supply requirements

12 VDC/PoE (802.3af)/ePoE

Environment

Outdoor

Operating temperature range

–30 °C to +60 °C

Dimensions

273.2 mm × 95.0 mm × 95.0 mm

Units per Shipping Box

1

Shipping Box Depth

37 cm

Shipping Box Height

14 cm

Shipping Box Weight

1.595 kg

Shipping Box Width

15 cm

Unit Calculated Volume

0.00777 cubm

Product Net Weight

1.12 kg

Unit Calculated Weight

1.59 kg

Unit Box Width

0.15

Unit Box Length

0.37

Unit Box Height

0.14

Full Description Line

Type Outdoor|Pixel Resolution 4 Mega Pixel|Focal Length 2.7-12 mm|IR Illumination|Sensor size 1/1.8 CMOS|Microphone Built-in|1xAudio-In|1xAudio-Out|1xRJ45|2xAlarm In|1xAlarm Out|Supports card capacities up to 512GB|Power options PoE/12V|Power supply requirements 12 VDC/PoE (802.3af)/ePoE|Environment Outdoor|Operating temperature range –30 °C to +60 °C|Dimensions 273.2 mm × 95.0 mm × 95.0 mm

Category Code

FNC
