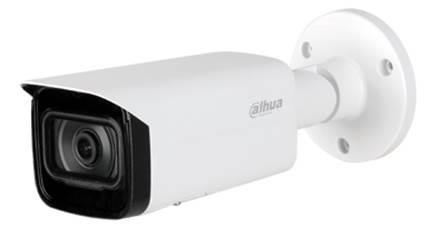

NET CAMERA 4MP IR BULLET/IPC-HFW5442T-ASE-0280BS3 DAHUA

- 1/1.8” 4 Megapixel progressive scan CMOS, 2688 × 1520 @30FPS
- Minimum illumination: 0.0007 lux @ F1.6 (Color, 30 IRE); 0.0004 lux @ F1.6 (B/W, 30 IRE); 0 lux (Illuminator on)
- True Day/Night with ICR Filter, BLC / HLC / True WDR (140dB), 3D DNR, Defog
- 2.8 mm fixed lens (112°)
- Up to 80 meters Smart IR Illumination
- H.265; H.264; H.264H; H.264B; MJPEG, ONVIF (Profile S/Profile G/Profile T); CGI
- Built-in MIC, Micro SD: Max 512GB, 1/1 Audio I/O, 1/1 Alarm I/O
- With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
- Bullet design, metal shell, IP67, IK10, -40°C~+60°C
- Power ePoE / PoE / 12VDC power, 9.8W max
- Free IP monitoring software available

Description

- 1/1.8” 4 Megapixel progressive scan CMOS, 2688 × 1520 @30FPS
- Minimum illumination: 0.0007 lux @ F1.6 (Color, 30 IRE); 0.0004 lux @ F1.6 (B/W, 30 IRE); 0 lux (Illuminator on)
- True Day/Night with ICR Filter, BLC / HLC / True WDR (140dB), 3D DNR, Defog
- 2.8 mm fixed lens (112°)
- Up to 80 meters Smart IR Illumination
- H.265; H.264; H.264H; H.264B; MJPEG, ONVIF (Profile S/Profile G/Profile T); CGI
- Built-in MIC, Micro SD: Max 512GB, 1/1 Audio I/O, 1/1 Alarm I/O
- With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
- Bullet design, metal shell, IP67, IK10, -40°C~+60°C
- Power ePoE / PoE / 12VDC power, 9.8W max
- Free IP monitoring software available

Vendor Homepage

www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizMind-S-Series/4MP/IPC-HFW5442T-ASE-S3=S3

Model

IPC-HFW5442T-ASE-0280B-S3

Camera design

Bullet

Network Camera Type

Fixed/Outdoor

Pixel Resolution

4 Mega Pixel

Focal Length

2.8mm

IR Illumination

Yes

Sensor size

1/1.8 CMOS

Microphone

Built-in

Lens Mount

M12

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Alarm In

1

Alarm Out

1

Audio-In

1

Audio-Out

1

MicroSD Card Slot

1

RJ45

1

Supports card capacities up to

512GB

Power options

12V/PoE

Power supply requirements

ePoE / PoE / 12VDC

Power consumption

9.8 Watts

Environment

Outdoor

Operating temperature range

-40°C~+60°C

Colour

White

Dimensions

244.1 mm × 79.0 mm × 75.9 mm

Units per Shipping Box

1

Shipping Box Depth

30 cm

Shipping Box Height

11 cm

Shipping Box Weight

1.222 kg

Shipping Box Width

12.5 cm

Unit Calculated Volume

0.004125 cubm

Product Net Weight

0.82 kg

Unit Calculated Weight

1.22 kg

Unit Box Width

0.125

Unit Box Length

0.3

Unit Box Height

0.11

Full Description Line

Type Fixed/Outdoor|Pixel Resolution 4 Mega Pixel|Focal Length 2.8mm|IR Illumination|Sensor size 1/1.8 CMOS|Microphone Built-in|Lens Mount M12|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xMicroSD Card Slot|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 512GB|Power options PoE/12V|Power supply requirements ePoE / PoE / 12VDC|Environment Outdoor|Operating temperature range -40°C~+60°C|Colour White|Dimensions 244.1 mm × 79.0 mm × 75.9 mm
