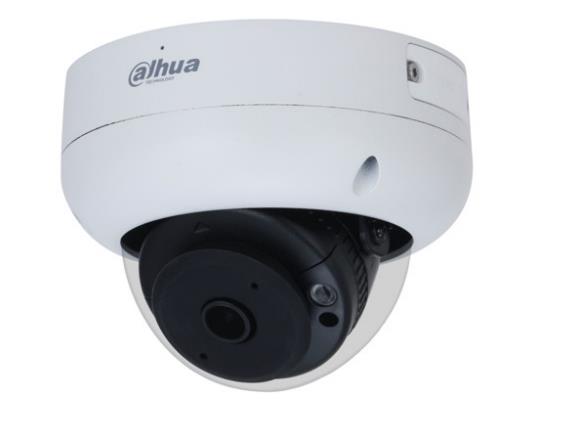

NET CAMERA 4MP IR DOME AI/IPC-HDBW3441R-AS-P-0210B DAHUA

- 1/2.7”4Megapixel progressive CMOS, 2880 × 1620 @ 20FPS
- Minimum illumination: 0.01 lux @ F2.0 (Color, 30 IRE); 0.001 lu x@ F2.0 (B/W, 30 IRE), 0 lux (Illuminator on)
- True Day/Night (ICR), BLC / HLC / True WDR 120dB /3D DNR
- 2.1 mm fixed lens (180°)
- Up to 15 meters Smart IR Illumination
- H.265; H.264; H.264B; MJPEG, Smart H.265+; Smart H.264+encoding, ONVIF (Profile S/Profile G/Profile T); CGI; P2P
- 1/1 Audio I/O, 1/1 Alarm I/O, Built-in MIC
- Micro SD card up to 256GB supported
- Metal case, IP67, IK10, -40°C~+60°C, PoE / 12VDC power, 7.7W max
- Smart capabilities: Tripwire; intrusion (Recognition of human and vehicle).
- Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. SMD 3.0
- Free IP monitoring software available

Description

- 1/2.7”4Megapixel progressive CMOS, 2880 × 1620 @ 20FPS
- Minimum illumination: 0.01 lux @ F2.0 (Color, 30 IRE); 0.001 lu x@ F2.0 (B/W, 30 IRE), 0 lux (Illuminator on)
- True Day/Night (ICR), BLC / HLC / True WDR 120dB /3D DNR
- 2.1 mm fixed lens (180°)
- Up to 15 meters Smart IR Illumination
- H.265; H.264; H.264B; MJPEG, Smart H.265+; Smart H.264+encoding, ONVIF (Profile S/Profile G/Profile T); CGI; P2P
- 1/1 Audio I/O, 1/1 Alarm I/O, Built-in MIC
- Micro SD card up to 256GB supported
- Metal case, IP67, IK10, -40°C~+60°C, PoE / 12VDC power, 7.7W max
- Smart capabilities: Tripwire; intrusion (Recognition of human and vehicle).
- Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. SMD 3.0
- Free IP monitoring software available

Vendor Homepage

www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/3-Series/Wide-Angle/IPC-HDBW3441R-AS-P

Model

IPC-HDBW3441R-AS-P-0210B

Camera design

Dome

Network Camera Type

Fixed Dome/Outdoor

Pixel Resolution

4 Mega Pixel

Focal Length

2.1 mm

IR Illumination

Yes

Sensor size

1/2.7 CMOS

Microphone

Built-in

Lens Mount

M12

Min. Illumination

0.001 Lux

Alarm In

1

Alarm Out

1

Audio-In

1

Audio-Out

1

MicroSD Card Slot

1

RJ45

1

Supports card capacities up to

256GB

Power options

12V/PoE

Power supply requirements

PoE / 12VDC power

Power consumption

7.7 Watts

Environment

Outdoor

Operating temperature range

-40°C~+60°C

Dimensions

94 mm × Φ122.0 mm

Units per Shipping Box

1

Shipping Box Depth

19 cm

Shipping Box Height

19 cm

Shipping Box Weight

0.775 kg

Shipping Box Width

16 cm

Unit Calculated Volume

0.005776 cubm

Product Net Weight

0.5 kg

Unit Calculated Weight

0.775 kg

Unit Box Width

0.16

Unit Box Length

0.19

Unit Box Height

0.19

Full Description Line

Type Fixed Dome/Outdoor|Pixel Resolution 4 Mega Pixel|Focal Length 2.1 mm|IR Illumination|Sensor size 1/2.7 CMOS|Microphone Built-in|Lens Mount M12|Min. Illumination 0.001 Lux|1xAudio-In|1xAudio-Out|1xMicroSD Card Slot|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements PoE / 12VDC power|Environment Outdoor|Operating temperature range -40°C~+60°C|Dimensions 94 mm × Φ122.0 mm
