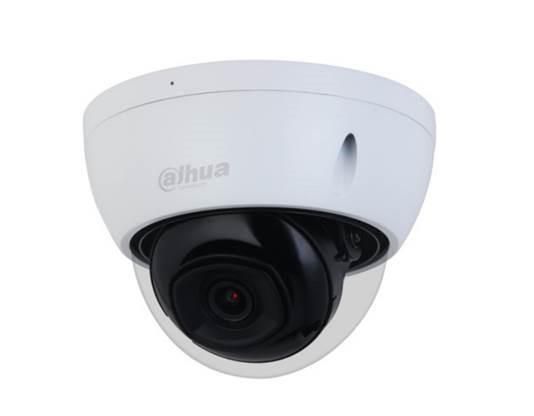

NET CAMERA 4MP IR DOME/IPC-HDBW2441E-S-0280B DAHUA

1/2.9” 4Megapixel progressive CMOS, 2688 × 1520 @ 20FPS max

Minimum illumination: 0.008 Lux @ F1.6 color, 0.0008 lux @ F1.6 (B/W,30IRE), 0 lux (Illuminator on)

True Day/Night (ICR), BLC/ HLC/ True WDR 120 dB / 3D DNR

Fixed 2.8 mm Lens (102°)

Up to 30 meters IR Illumination, Smart IR

Micro SD Card slot up to 256GB, built in 1-channel MIC

H.265; H.264; H.264B; MJPEG, Smart H.265+; Smart H.264+ encoding, ONVIF (Profile S/Profile G); CGI; P2P

Dome design, metal shell, IK10, IP67, -40°C~+60°C, PoE / 12VDC power

General IVS Analytics: Intrusion; tripwire, SMD Plus

Free IP monitoring software available

Description

1/2.9” 4Megapixel progressive CMOS, 2688 × 1520 @ 20FPS max

Minimum illumination: 0.008 Lux @ F1.6 color, 0.0008 lux @ F1.6 (B/W,30IRE), 0 lux (Illuminator on)

True Day/Night (ICR), BLC/ HLC/ True WDR 120 dB / 3D DNR

Fixed 2.8 mm Lens (102°)

Up to 30 meters IR Illumination, Smart IR

Micro SD Card slot up to 256GB, built in 1-channel MIC

H.265; H.264; H.264B; MJPEG, Smart H.265+; Smart H.264+ encoding, ONVIF (Profile S/Profile G); CGI; P2P

Dome design, metal shell, IK10, IP67, -40°C~+60°C, PoE / 12VDC power

General IVS Analytics: Intrusion; tripwire, SMD Plus

Free IP monitoring software available

Vendor Homepage

www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/2-Series/4MP/IPC-HDBW2441E-S

Model

IPC-HDBW2441E-S-0280B

Camera design

Dome

Network Camera Type

Fixed Dome/Outdoor

Pixel Resolution

4 Mega Pixel

Focal Length

2.8 mm

IR Illumination

Yes

Sensor size

1/2.9 CMOS

Microphone

Built-in

Lens Mount

M12

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

MicroSD Card Slot

1

RJ45

1

Supports card capacities up to

256GB

Power options

12V/PoE

Power supply requirements

12 VDC/PoE

Environment

Outdoor

Operating temperature range

–40 °C to +60 °C

Dimensions

81.0 mm × Φ109.9 mm

Units per Shipping Box

1

Shipping Box Depth

14.5 cm

Shipping Box Height

12 cm

Shipping Box Weight

0.51 kg

Shipping Box Width

14 cm

Unit Calculated Volume

0.002436 cubm

Product Net Weight

0.34 kg

Unit Calculated Weight

0.51 kg

CnCode

85258900

Unit Box Width

0.14

Unit Box Length

0.145

Unit Box Height

0.12

Full Description Line

Type Fixed Dome/Outdoor|Pixel Resolution 4 Mega Pixel|Focal Length 2.8 mm|IR Illumination|Sensor size 1/2.9 CMOS|Microphone Built-in|Lens Mount M12|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xMicroSD Card Slot|1xRJ45|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12 VDC/PoE|Environment Outdoor|Operating temperature range –40 °C to +60 °C|Dimensions 81.0 mm × Φ109.9 mm

Category Code

FNC
