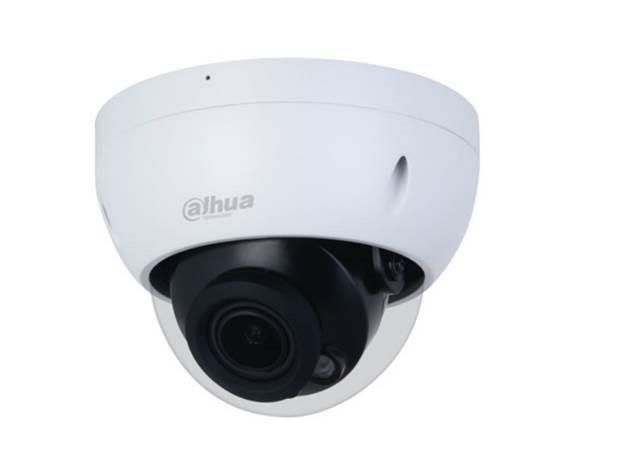

NET CAMERA 4MP IR DOME/IPC-HDBW2441R-ZAS-27135 DAHUA

1/2.9” 4Megapixel progressive CMOS, 2688 × 1520 @ 20FPS max

Minimum illumination: 0.008 Lux @ F1.6 color, 0.0008 lux @ F1.6 (B/W,30IRE), 0 lux (Illuminator on)

Up to 40 meters IR Illumination, Smart IR

True Day/Night (ICR), 3DNR, BLC / HLC / True WDR 120dB / 3D DNR

Motorized zoom lens 2.7mm~13.5mm (104°~29°)

H.265; H.264; H.264B; MJPEG, Smart H.265+; Smart H.264+ encoding, ONVIF (Profile S/Profile G); CGI; P2P

Micro SD Card slot up to 256GB, built in 1-channel MIC

1/1 Audio I/O, 1/1 Alarm I/O

Metal case, Dome design, IP67, IK10, -30°C~+60°C, PoE / 12VDC power

General IVS Analytics: Intrusion; tripwire, SMD Plus

Free IP monitoring software available

Description

1/2.9” 4Megapixel progressive CMOS, 2688 × 1520 @ 20FPS max

Minimum illumination: 0.008 Lux @ F1.6 color, 0.0008 lux @ F1.6 (B/W,30IRE), 0 lux (Illuminator on)

Up to 40 meters IR Illumination, Smart IR

True Day/Night (ICR), 3DNR, BLC / HLC / True WDR 120dB / 3D DNR

Motorized zoom lens 2.7mm~13.5mm (104°~29°)

H.265; H.264; H.264B; MJPEG, Smart H.265+; Smart H.264+ encoding, ONVIF (Profile S/Profile G); CGI; P2P

Micro SD Card slot up to 256GB, built in 1-channel MIC

1/1 Audio I/O, 1/1 Alarm I/O

Metal case, Dome design, IP67, IK10, -30°C~+60°C, PoE / 12VDC power

General IVS Analytics: Intrusion; tripwire, SMD Plus

Free IP monitoring software available

Vendor Homepage

www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/2-Series/4MP/IPC-HDBW2441R-ZAS

Model

IPC-HDBW2441R-ZAS-27135

Camera design

Dome

Network Camera Type

Fixed Dome/Outdoor

Pixel Resolution

4 Mega Pixel

Focal Length

2.7mm~13.5mm

IR Illumination

Yes

Sensor size

1/2.9 CMOS

Microphone

Built-in

Min. Illumination

0.0008 Lux

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Audio-In

1

Audio-Out

1

MicroSD Card Slot

1

RJ45

1

Supports card capacities up to

256GB

Power options

12V/PoE

Power supply requirements

12 VDC/PoE (802.3af)

Environment

Outdoor

Operating temperature range

–30 °C to +60 °C

Dimensions

93.4 mm × Φ122 mm

Units per Shipping Box

1

Shipping Box Depth

16 cm

Shipping Box Height

14 cm

Shipping Box Weight

0.68 kg

Shipping Box Width

16 cm

Unit Calculated Volume

0.003584 cubm

Product Net Weight

0.52 kg

Unit Calculated Weight

0.68 kg

Unit Box Width

0.16

Unit Box Length

0.16

Unit Box Height

0.14

Full Description Line

Type Fixed Dome/Outdoor|Pixel Resolution 4 Mega Pixel|Focal Length 2.7mm~13.5mm|IR Illumination|Sensor size 1/2.9 CMOS|Microphone Built-in|Min. Illumination 0.0008 Lux|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xMicroSD Card Slot|1xRJ45|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12 VDC/PoE (802.3af)|Environment Outdoor|Operating temperature range –30 °C to +60 °C|Dimensions 93.4 mm × Φ122 mm

Category Code

FNC
