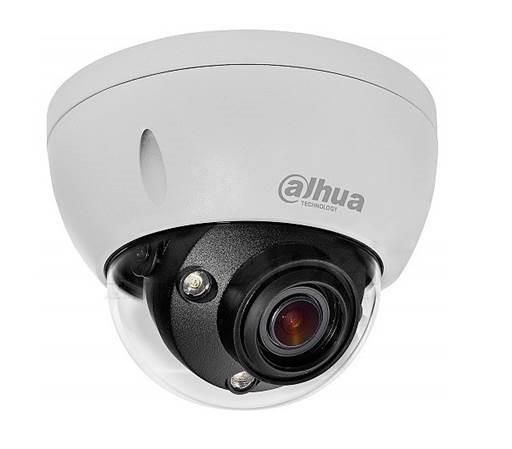

NET CAMERA 4MP IR DOME/IPC-HDBW5442E-ZE-2712 DAHUA

1/1.8” CMOS, 2688 × 1520 @ 30FPS

Minimum illumination: 0.003 lux@F1.8 (Color, 30 IRE); 0.0003 lux@F1.8 (B/W, 30 IRE); 0 lux (Illuminator on)

True Day/Night with ICR Filter, BLC / HLC / True WDR (140dB), 3D DNR, EIS, Defog

Motorized zoom lens 2.7 mm–12.0 mm (114°–47°)

Up to 40 meters Smart IR Illumination

H.265,H.264,H.264B,H.264H, MJPEG, Smart H.265+/ Smart H.264+, ONVIF (Profile S/Profile G/Profile T), CGI, Milestone, Genetec, P2P

Micro SD: Max 256GB, 1/1 Audio I/O, 1/1 Alarm I/O,

Smart detection Face Detection, Perimeter Protection, People Counting, Object Abandoned/Missing, Heat Map

Dome design, metal shell, IP67, IK10, -30°C~+60°C

Power ePoE / PoE / 12VDC, 11.9W max

Free IP monitoring software available

Description

1/1.8” CMOS, 2688 × 1520 @ 30FPS

Minimum illumination: 0.003 lux@F1.8 (Color, 30 IRE); 0.0003 lux@F1.8 (B/W, 30 IRE); 0 lux (Illuminator on)

True Day/Night with ICR Filter, BLC / HLC / True WDR (140dB), 3D DNR, EIS, Defog

Motorized zoom lens 2.7 mm–12.0 mm (114°–47°)

Up to 40 meters Smart IR Illumination

H.265,H.264,H.264B,H.264H, MJPEG, Smart H.265+/ Smart H.264+, ONVIF (Profile S/Profile G/Profile T), CGI, Milestone, Genetec, P2P

Micro SD: Max 256GB, 1/1 Audio I/O, 1/1 Alarm I/O,

Smart detection Face Detection, Perimeter Protection, People Counting, Object Abandoned/Missing, Heat Map

Dome design, metal shell, IP67, IK10, -30°C~+60°C

Power ePoE / PoE / 12VDC, 11.9W max

Free IP monitoring software available

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-Series/5-Series/4MP/IPC-HDBW5442E-ZE

Camera design

Dome

Network Camera Type

Fixed Dome

Pixel Resolution

4 Mega Pixel

Focal Length

2.7 mm–12.0mm

IR Illumination

Yes

Sensor size

1/1.8” CMOS

Min. Illumination

0.003 Lux

Effective pixels

2688 (H) × 1520 (V)

Electronic Shutter Speed

Auto/Manual, 1/3 s–1/100000 s

Alarm In

1

Alarm Out

1

Audio-In

1

Audio-Out

1

Supports card capacities up to

256GB

Power options

12V/PoE

Power supply requirements

12VDC

Power consumption

11.9 Watts

Environment

Outdoor

Operating temperature range

-30°C~+60°C

Units per Shipping Box

1

Shipping Box Depth

19.5 cm

Shipping Box Height

20.5 cm

Shipping Box Weight

1.18 kg

Shipping Box Width

19.2 cm

Unit Calculated Volume

0.007675 cubm

Product Net Weight

0.95 kg

Unit Calculated Weight

1.18 kg

Unit Box Width

0.192

Unit Box Length

0.195

Unit Box Height

0.205

Full Description Line

Type Fixed Dome|Pixel Resolution 4 Mega Pixel|Focal Length 2.7 mm–12.0mm|IR Illumination|Sensor size 1/1.8” CMOS|Min. Illumination 0.003 Lux|Effective pixels 2688 (H) × 1520 (V)|Electronic Shutter Speed Auto/Manual, 1/3 s–1/100000 s|1xAudio-In|1xAudio-Out|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12VDC|Environment Outdoor|Operating temperature range -30°C~+60°C

Category Code

FNC
