NET CAMERA 4MP IR DOME/IPC-HDBW5442EZE2712-S3-B DAHUA

IPC-HDBW5442E-ZE2712-S3-B

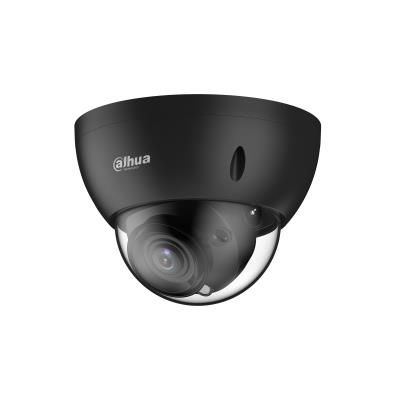

4MP IR Vari-focal Vandal-proof Dome WizMind Network Camera

> 4-MP 1/1.8 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4MP (2688×1520) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card, built-in MIC
> 12 VDC/24 VAC/PoE power supply; ePoE.
> IP67 and IK10 protection.
> SMD 3.0

Focal Length: 2.7 mm–12 mm, Field of View: H: 115°–47°

Description

IPC-HDBW5442E-ZE2712-S3-B


4MP IR Vari-focal Vandal-proof Dome WizMind Network Camera

> 4-MP 1/1.8 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4MP (2688×1520) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card, built-in MIC
> 12 VDC/24 VAC/PoE power supply; ePoE.
> IP67 and IK10 protection.
> SMD 3.0

Focal Length: 2.7 mm–12 mm, Field of View: H: 115°–47°

Vendor Homepage

www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizMind-S-Series/4MP/IPC-HDBW5442E-ZE-S3=S3

Model

IPC-HDBW5442E-ZE2712-S3-B

Camera design

Dome

Network Camera Type

Fixed Dome/HDTV/Megapixel/Outdoor

Pixel Resolution

4 Mega Pixel

Focal Length

2.7 mm–12 mm

IR Illumination

Yes

Sensor size

1/1.8 CMOS

Microphone

Built-in

Min. Illumination

0.0004 Lux

Effective pixels

2688 (H) × 1520 (V)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Alarm In

1

Alarm Out

1

Audio-In

1

Audio-Out

1

MicroSD Card Slot

1

RJ45

1

Supports card capacities up to

1TB

Power supply requirements

12 VDC/24 VAC/PoE (802.3af)/ePoE

Environment

Outdoor

Operating temperature range

–30 °C to +60 °C

Colour

Black

Dimensions

Φ159.1 mm × 118.1 mm

Units per Shipping Box

1

Shipping Box Depth

18.5 cm

Shipping Box Height

14.5 cm

Shipping Box Weight

1.25 kg

Shipping Box Width

18.5 cm

Unit Calculated Volume

0.004963 cubm

Product Net Weight

0.91 kg

Unit Calculated Weight

1.25 kg

Unit Box Width

0.185

Unit Box Length

0.185

Unit Box Height

0.145

Full Description Line

Type Fixed Dome/HDTV/Megapixel/Outdoor|Pixel Resolution 4 Mega Pixel|Focal Length 2.7 mm–12 mm|IR Illumination|Sensor size 1/1.8 CMOS|Microphone Built-in|Min. Illumination 0.0004 Lux|Effective pixels 2688 (H) × 1520 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xMicroSD Card Slot|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 1TB|Power supply requirements 12 VDC/24 VAC/PoE (802.3af)/ePoE|Environment Outdoor|Operating temperature range –30 °C to +60 °C|Colour Black|Dimensions Φ159.1 mm × 118.1 mm

Category Code

FNC
