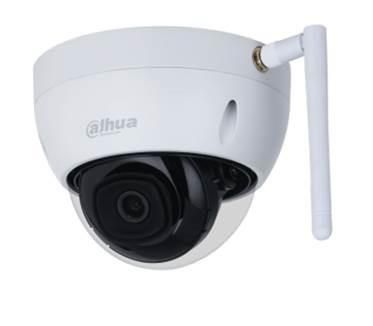

NET CAMERA 4MP IR DOME WIFI/IPC-HDBW1430DE-SW-0280B DAHUA

1/3” 4 Megapixel progressive CMOS, 2560 × 1440 @20 fps

2.8 mm fixed lens (90 °)

Min. Illumination: 0.025 lux@ F2.0 (Color,30 IRE); 0.0025 lux@ F2.0 (B/W,30 IRE); 0 lux (Illuminator on)

Up to 30 meters IR Illumination

True Day/Night with ICR Filter, BLC, HLC, DWDR, 3D DNR

Smart H.265+; Smart H.264+, H.264B; H.264; H.264H; H.265, ONVIF (Profile S/Profile G); CGI; P2P

Wi-Fi: IEEE802.11b/g/n 2.4~2.4835GHz, up to 80 m

Micro SD Slot (up to 256 GB)

DC 12V1A Power supply, Power Consumption: < 4.9W

Bullet design, metal case, IP67, -40°C to +50°C, indoor/outdoor use

Free IP monitoring software available

Description

1/3” 4 Megapixel progressive CMOS, 2560 × 1440 @20 fps

2.8 mm fixed lens (90 °)

Min. Illumination: 0.025 lux@ F2.0 (Color,30 IRE); 0.0025 lux@ F2.0 (B/W,30 IRE); 0 lux (Illuminator on)

Up to 30 meters IR Illumination

True Day/Night with ICR Filter, BLC, HLC, DWDR, 3D DNR

Smart H.265+; Smart H.264+, H.264B; H.264; H.264H; H.265, ONVIF (Profile S/Profile G); CGI; P2P

Wi-Fi: IEEE802.11b/g/n 2.4~2.4835GHz, up to 80 m

Micro SD Slot (up to 256 GB)

DC 12V1A Power supply, Power Consumption: < 4.9W

Bullet design, metal case, IP67, -40°C to +50°C, indoor/outdoor use

Free IP monitoring software available

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Cameras/Wireless-Series/Wi-Fi-Series/4MP/IPC-HDBW1430DE-SW

Camera design

Dome

Network Camera Type

Fixed Dome/HDTV/Megapixel/Outdoor

Pixel Resolution

4 Mega Pixel

Focal Length

2.8 mm

IR Illumination

Yes

Sensor size

1/3” 4

Microphone

Built-in

Lens Mount

M12

Min. Illumination

0.025 Lux

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

MicroSD Card Slot

1

Power options

12V

Power supply requirements

DC 12V1A

Power consumption

4.9 Watts

Environment

Outdoor

Operating temperature range

-40°C to +50°C

Units per Shipping Box

1

Shipping Box Depth

14 cm

Shipping Box Height

14.5 cm

Shipping Box Weight

0.639 kg

Shipping Box Width

12.5 cm

Unit Calculated Volume

0.002537 cubm

Product Net Weight

0.414 kg

Unit Calculated Weight

0.639 kg

Unit Box Width

0.125

Unit Box Length

0.14

Unit Box Height

0.145

Full Description Line

Type Fixed Dome/HDTV/Megapixel/Outdoor|Pixel Resolution 4 Mega Pixel|Focal Length 2.8 mm|IR Illumination|Sensor size 1/3” 4|Microphone Built-in|Lens Mount M12|Min. Illumination 0.025 Lux|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xMicroSD Card Slot|Power options 12V|Power supply requirements DC 12V1A|Environment Outdoor|Operating temperature range -40°C to +50°C

Category Code

FNC
