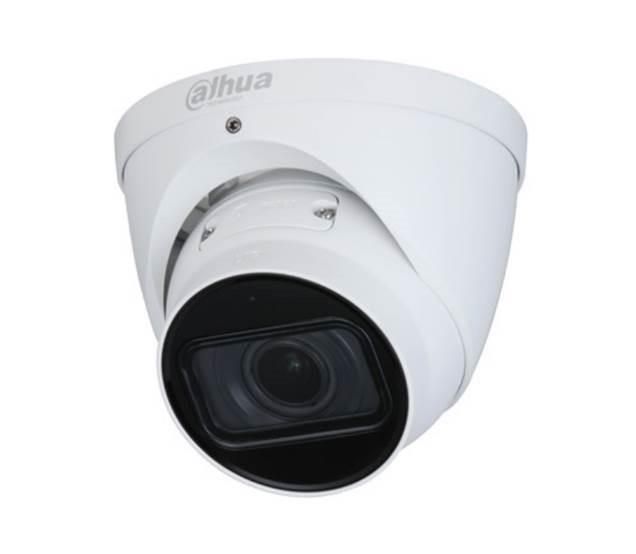

NET CAMERA 4MP IR EYEBALL/IPC-HDW2441T-ZS-27135 DAHUA

- 1/2.9 ” CMOS; 2688x1520 @ 20FPS
- Minimum illumination: 0.008 lux @ F1.5(Color,30IRE); 0.0008 lux @ F1.5(B/W,30IRE); 0 lux (Illuminator on)
- True Day/Night (ICR), BLC/ HLC/ True WDR(120dB) / 3D DNR
- 2.7 mm–13.5 mm variocal lens (104°–29°)
- Up to 40 meters IR Illumination, Smart IR
- ONVIF (Profile S/Profile T); CGI; P2P; Milestone
- SD Card slot 256 GB max, Built-in MIC
- Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
- Eyeball design, Metal case, IP67, -30°C~+60°C, PoE / 12VDC power. 6.1 W max
- Free IP monitoring software available

Description

- 1/2.9 ” CMOS; 2688x1520 @ 20FPS
- Minimum illumination: 0.008 lux @ F1.5(Color,30IRE); 0.0008 lux @ F1.5(B/W,30IRE); 0 lux (Illuminator on)
- True Day/Night (ICR), BLC/ HLC/ True WDR(120dB) / 3D DNR
- 2.7 mm–13.5 mm variocal lens (104°–29°)
- Up to 40 meters IR Illumination, Smart IR
- ONVIF (Profile S/Profile T); CGI; P2P; Milestone
- SD Card slot 256 GB max, Built-in MIC
- Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
- Eyeball design, Metal case, IP67, -30°C~+60°C, PoE / 12VDC power. 6.1 W max
- Free IP monitoring software available

Vendor Homepage

www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/2-Series/4MP/IPC-HDW2441T-ZS

Model

IPC-HDW2441T-ZS-27135

Camera design

Eyeball

Network Camera Type

Outdoor

Pixel Resolution

4 Mega Pixel

Focal Length

2.7 mm–13.5 mm

IR Illumination

Yes

Sensor size

1/2.9 ” CMOS

Microphone

Built-in

Min. Illumination

0.0008 Lux

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

MicroSD Card Slot

1

RJ45

1

Supports card capacities up to

256GB

Power options

12V/PoE

Power supply requirements

PoE / 12VDC power

Power consumption

6.1 Watts

Environment

Outdoor

Operating temperature range

-30°C~+60°C

Dimensions

108.3 mm × Φ122 mm

Units per Shipping Box

1

Shipping Box Depth

16 cm

Shipping Box Height

13.5 cm

Shipping Box Weight

0.86 kg

Shipping Box Width

15.5 cm

Unit Calculated Volume

0.003348 cubm

Product Net Weight

0.69 kg

Unit Calculated Weight

0.86 kg

Unit Box Width

0.155

Unit Box Length

0.16

Unit Box Height

0.135

Full Description Line

Type Outdoor|Pixel Resolution 4 Mega Pixel|Focal Length 2.7 mm–13.5 mm|IR Illumination|Sensor size 1/2.9 ” CMOS|Microphone Built-in|Min. Illumination 0.0008 Lux|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xMicroSD Card Slot|1xRJ45|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements PoE / 12VDC power|Environment Outdoor|Operating temperature range -30°C~+60°C|Dimensions 108.3 mm × Φ122 mm

Category Code

FNC
