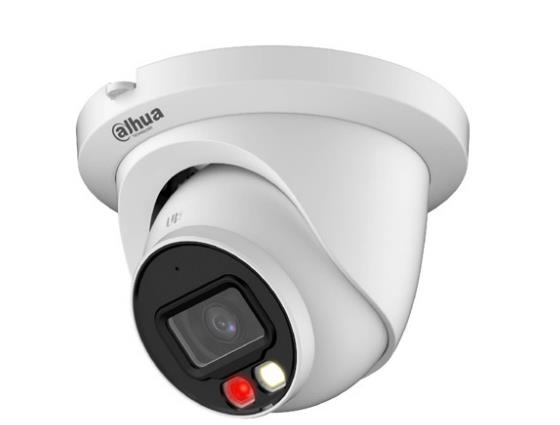

NET CAMERA 4MP IR EYEBALL/IPC-HDW2449TM-S-IL-0280B DAHUA

- 1/2.9” 4Megapixel progressive CMOS, 2688 × 1520 @ 20 fps
- Minimum illumination: 0.008 lux @ F1.6 (Color, 30 IRE), 0.0008 [email protected] (B/W, 30 IRE), 0 lux (Illuminator on)
- 2.8 mm fixed lens (95°)
- Up to 30 meters Illumination: white warm light/IR LED
- True Day/Night (ICR), BLC / HLC / True WDR 120dB /3D DNR
- H.265; H.264; H.264B; MJPEG, Smart H.265+; Smart H.264+encoding, ONVIF (Profile S/Profile G/Profile T); CGI; P2P
- No alarm I/O, no audio I/O, Built-in MIC
- Micro SD card up to 256GB supported
- Metal case, IP67, -40°C~+60°C, PoE / 12VDC power, 7.3W max
- Smart capabilities: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
- Free IP monitoring software available

Description

- 1/2.9” 4Megapixel progressive CMOS, 2688 × 1520 @ 20 fps
- Minimum illumination: 0.008 lux @ F1.6 (Color, 30 IRE), 0.0008 [email protected] (B/W, 30 IRE), 0 lux (Illuminator on)
- 2.8 mm fixed lens (95°)
- Up to 30 meters Illumination: white warm light/IR LED
- True Day/Night (ICR), BLC / HLC / True WDR 120dB /3D DNR
- H.265; H.264; H.264B; MJPEG, Smart H.265+; Smart H.264+encoding, ONVIF (Profile S/Profile G/Profile T); CGI; P2P
- No alarm I/O, no audio I/O, Built-in MIC
- Micro SD card up to 256GB supported
- Metal case, IP67, -40°C~+60°C, PoE / 12VDC power, 7.3W max
- Smart capabilities: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
- Free IP monitoring software available

Vendor Homepage

www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Illuminators/IPC-HDW2449TM-S-IL

Model

IPC-HDW2449TM-S-IL-0280B

Camera design

Eyeball

Network Camera Type

Fixed/Outdoor

Pixel Resolution

4 Mega Pixel

Focal Length

2.8 mm

IR Illumination

Yes

Sensor size

1/2.9 CMOS

Microphone

Built-in

Lens Mount

M12

Min. Illumination

0.0008 Lux

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

MicroSD Card Slot

1

RJ45

1

Supports card capacities up to

256GB

Power options

12V/PoE

Power supply requirements

PoE / 12VDC power

Power consumption

7.3 Watts

Environment

Outdoor

Operating temperature range

-40°C~+60°C

Dimensions

99.1 mm × Φ121.9 mm

Units per Shipping Box

1

Shipping Box Depth

14 cm

Shipping Box Height

14 cm

Shipping Box Weight

0.66 kg

Shipping Box Width

11.5 cm

Unit Calculated Volume

0.002254 cubm

Product Net Weight

0.46 kg

Unit Calculated Weight

0.66 kg

Unit Box Width

0.115

Unit Box Length

0.14

Unit Box Height

0.14

Full Description Line

Type Fixed/Outdoor|Pixel Resolution 4 Mega Pixel|Focal Length 2.8 mm|IR Illumination|Sensor size 1/2.9 CMOS|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0008 Lux|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xMicroSD Card Slot|1xRJ45|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements PoE / 12VDC power|Environment Outdoor|Operating temperature range -40°C~+60°C|Dimensions 99.1 mm × Φ121.9 mm

Category Code

FNC
