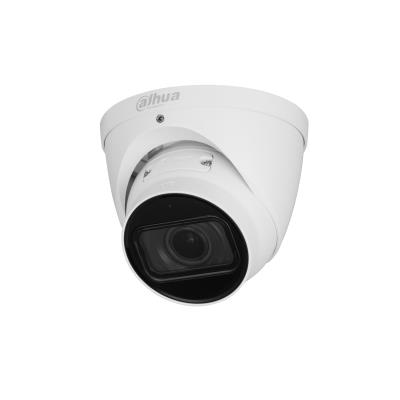

NET CAMERA 4MP IR EYEBALL/IPC-HDW5442T-ZE-2712-S3 DAHUA

IPC-HDW5442T-ZE

4MP IR Vari-focal Eyeball WizMind Network Camera

* The parameters and datasheets below can only be applied to 5442- Z-S3 series.
> 4-MP 1/1.8 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4MP (2688×1520) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, IVS, face detection, smart object detection, and people counting, etc.
> Supports max. 512 GB Micro SD card, built-in MIC.
> 12 VDC/PoE power supply; ePoE.
> IP67 protection.
> SMD 3.0.

Description

IPC-HDW5442T-ZE

4MP IR Vari-focal Eyeball WizMind Network Camera

* The parameters and datasheets below can only be applied to 5442- Z-S3 series.
> 4-MP 1/1.8 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4MP (2688×1520) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, IVS, face detection, smart object detection, and people counting, etc.
> Supports max. 512 GB Micro SD card, built-in MIC.
> 12 VDC/PoE power supply; ePoE.
> IP67 protection.
> SMD 3.0.

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-S-Series/4MP/IPC-HDW5442T-ZE=S3

Model

IPC-HDW5442T-ZE-2712-S3

Camera design

Eyeball

Network Camera Type

Fixed/Outdoor

Pixel Resolution

4 Mega Pixel

Focal Length

2.7 mm–12 mm

IR Illumination

Yes

Sensor size

1/1.8 CMOS

Microphone

Built-in

Min. Illumination

0.0004 Lux

Audio-In

1

Audio-Out

1

MicroSD Card Slot

1

RJ45

1

Supports card capacities up to

512GB

Power options

12V/PoE

Power consumption

3.5 Watts

Environment

Outdoor

Operating temperature range

–30 °C to +60 °C

Colour

White

Dimensions

108.3 mm × 122 mm

Units per Shipping Box

1

Shipping Box Depth

16 cm

Shipping Box Height

16 cm

Shipping Box Weight

0.943 kg

Shipping Box Width

14 cm

Unit Calculated Volume

0.003584 cubm

Product Net Weight

0.7 kg

Unit Calculated Weight

0.943 kg

Unit Box Width

0.14

Unit Box Length

0.16

Unit Box Height

0.16

Full Description Line

Type Fixed/Outdoor|Pixel Resolution 4 Mega Pixel|Focal Length 2.7 mm–12 mm|IR Illumination|Sensor size 1/1.8 CMOS|Microphone Built-in|Min. Illumination 0.0004 Lux|1xAudio-In|1xAudio-Out|1xMicroSD Card Slot|1xRJ45|Supports card capacities up to 512GB|Power options PoE/12V|Environment Outdoor|Operating temperature range –30 °C to +60 °C|Colour White|Dimensions 108.3 mm × 122 mm

Category Code

FNC
