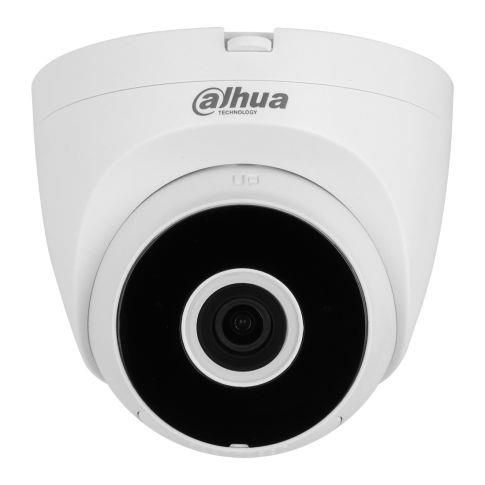

NET CAMERA 4MP IR EYEBALL WIFI/IPC-HDW1430DT-SAW-0280B DAHUA

IP CAMERA IPC-HDW1430DT-SAW-0280B Wi-Fi - 3.7 Mpx 2.8 mm DAHUA

IP Wi-Fi camera with efficient H.265 image compression algorithm for clear and smooth video streaming at max. resolution of 4 Mpx. The range of IR illumination according to the manufacturer data, depends on outer conditions (visibility - air transparency, environment, wall colors ie. scene reflectance). Camera is according to IP67 Index of Protection norm.

Description

IP CAMERA IPC-HDW1430DT-SAW-0280B Wi-Fi - 3.7 Mpx 2.8 mm DAHUA

IP Wi-Fi camera with efficient H.265 image compression algorithm for clear and smooth video streaming at max. resolution of 4 Mpx. The range of IR illumination according to the manufacturer data, depends on outer conditions (visibility - air transparency, environment, wall colors ie. scene reflectance). Camera is according to IP67 Index of Protection norm.

Vendor Homepage

www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Illuminators/IPC-HDW2449TM-S-IL

Model

IPC-HDW1430DT-SAW-0280B

Camera design

Eyeball

Network Camera Type

HDTV/Megapixel/Outdoor

Pixel Resolution

4 Mega Pixel

IR Illumination

Yes

Sensor size

1/3

Microphone

Built-in

Lens Mount

M12

Min. Illumination

0.003 Lux

Effective pixels

2560 (H) × 1440 (V)

Electronic Shutter Speed

Auto/Manual 1/3 s –1/100000 s

RJ45

1

Supports card capacities up to

256GB

Power options

12V

Power supply requirements

12 V DC /510 mA

Power consumption

6.1 Watts

Environment

Outdoor

Operating temperature range

–30 °C to +60 °C

Colour

White

Dimensions

Ø 109.9 x 102.2 mm

Units per Shipping Box

1

Shipping Box Depth

14 cm

Shipping Box Height

11 cm

Shipping Box Weight

0.473 kg

Shipping Box Width

12.5 cm

Unit Calculated Volume

0.001925 cubm

Product Net Weight

0.32 kg

Unit Calculated Weight

0.473 kg

Unit Box Width

0.125

Unit Box Length

0.14

Unit Box Height

0.11

Full Description Line

Type HDTV/Megapixel/Outdoor|Pixel Resolution 4 Mega Pixel|IR Illumination|Sensor size 1/3|Microphone Built-in|Lens Mount M12|Min. Illumination 0.003 Lux|Effective pixels 2560 (H) × 1440 (V)|Electronic Shutter Speed Auto/Manual 1/3 s –1/100000 s|1xRJ45|Supports card capacities up to 256GB|Power options 12V|Power supply requirements 12 V DC /510 mA|Environment Outdoor|Operating temperature range –30 °C to +60 °C|Colour White|Dimensions Ø 109.9 x 102.2 mm

Category Code

FNC
