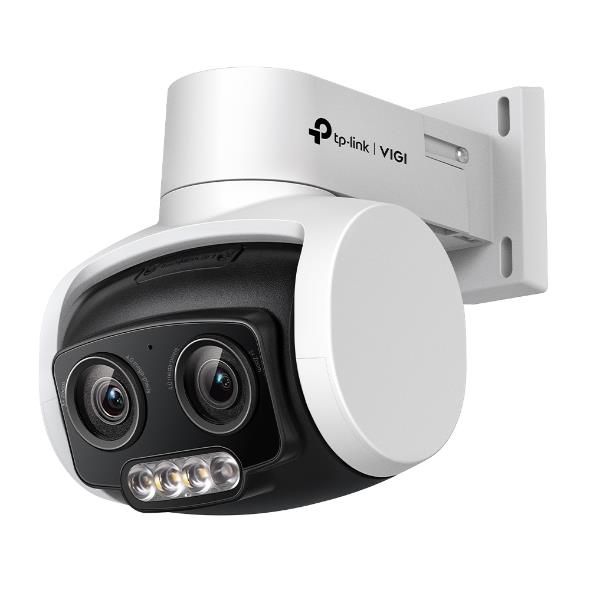

NET CAMERA 4MP PTZ/VIGI C540V TP-LINK

VIGI 4MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Network Camera - 4MP Super-High Definition: 4MP offers more than enough pixels to pick up some of the more discreet details.
- 24h Full-Color: Captures 24 hours of full-color details, even in pitch-black conditions, thanks to large-aperture lens, a high-sensitivity sensor, and 4× attached supplemental lights.
- 3× Zoom: Allows for closer viewing of objects in expansive areas.
- Instant Zoom: Zooming is instant without suffering from delays and image dragging.
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, removes/abandons objects, or enters/exits certain region.
- Powerful Pan Tilt: Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property.
- Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
- H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
- IP66 Waterproof: Reliable IP66 for stable outdoor performance.
- Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256GB).

Description

VIGI 4MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Network Camera - 4MP Super-High Definition: 4MP offers more than enough pixels to pick up some of the more discreet details.
- 24h Full-Color: Captures 24 hours of full-color details, even in pitch-black conditions, thanks to large-aperture lens, a high-sensitivity sensor, and 4× attached supplemental lights.
- 3× Zoom: Allows for closer viewing of objects in expansive areas.
- Instant Zoom: Zooming is instant without suffering from delays and image dragging.
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, removes/abandons objects, or enters/exits certain region.
- Powerful Pan Tilt: Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property.
- Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
- H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
- IP66 Waterproof: Reliable IP66 for stable outdoor performance.
- Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256GB).

Vendor Homepage

www.tp-link.com/en/business-networking/vigi-network-camera/vigi-c540v/

Model

VIGI C540V

Camera design

PT/PTZ

Network Camera Type

Outdoor/PTZ

Pixel Resolution

4 Mega Pixel

Focal Length

4-12 mm

IR Illumination

Yes

Sensor size

1/3” Progressive Scan CMOS

Microphone

Built-in

Min. Illumination

0.005 Lux

Electronic Shutter Speed

1/3 to 1/10000 s

RJ45

1

Supports card capacities up to

256GB

Power options

12V/PoE

Power supply requirements

12V DC ± 5%, Max. 14 W, 5.5mm Coaxial Power Plug PoE: 802.3at, class 4, Max. 16 W

Environment

Outdoor

Operating temperature range

-30–60 °C

Included Accessories

Quick Start Guide;
Waterproof Cable Attachments;
Mounting Accessories

Colour

White

Dimensions

107× 136× 139 mm

Units per Shipping Box

1

Shipping Box Depth

19 cm

Shipping Box Height

16 cm

Shipping Box Weight

0.7 kg

Shipping Box Width

15 cm

Unit Calculated Volume

0.00456 cubm

Product Net Weight

0.43 kg

Unit Calculated Weight

0.7 kg

Unit Box Width

0.15

Unit Box Length

0.19

Unit Box Height

0.16

Full Description Line

Type Outdoor/PTZ|Pixel Resolution 4 Mega Pixel|Focal Length 4-12 mm|IR Illumination|Sensor size 1/3” Progressive Scan CMOS|Microphone Built-in|Min. Illumination 0.005 Lux|Electronic Shutter Speed 1/3 to 1/10000 s|1xRJ45|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12V DC ± 5%, Max. 14 W, 5.5mm Coaxial Power Plug PoE: 802.3at, class 4, Max. 16 W|Environment Outdoor|Operating temperature range -30–60 °C|Included Accessories Quick Start Guide;Waterproof Cable Attachments;Mounting Accessories|Colour White|Dimensions 107× 136× 139 mm
