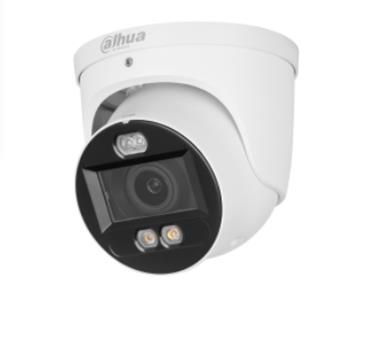

NET CAMERA 5MP EYEBALL/HDW3549H-ZAS-PV-27135 DAHUA

5 MP Smart Dual Light Active Deterrence Vari-focal Eyeball WizSense Network Camera
> 5-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5 MP (2960 × 1668) @20 fps and supports 4 MP (2688 × 1520)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light and IR LED; the max. IR illumination distance is 50 m and warm light distance is 40 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual Mic; built-in speaker; support two-way talk.
> 12 VDC/PoE power supply.
> IP67 protection.
> Sound and light alarm (red and blue lights).
> SMD 4.0.
> One-tap arming/disarming through alarm input

Description

5 MP Smart Dual Light Active Deterrence Vari-focal Eyeball WizSense Network Camera
> 5-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5 MP (2960 × 1668) @20 fps and supports 4 MP (2688 × 1520)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light and IR LED; the max. IR illumination distance is 50 m and warm light distance is 40 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual Mic; built-in speaker; support two-way talk.
> 12 VDC/PoE power supply.
> IP67 protection.
> Sound and light alarm (red and blue lights).
> SMD 4.0.
> One-tap arming/disarming through alarm input

Vendor Homepage

www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/TiOC/IPC-HDW3549H-ZAS-PV

Model

IPC-HDW3549H-ZAS-PV-27135

Camera design

Eyeball

Network Camera Type

Outdoor

Pixel Resolution

5 Mega Pixel

IR Illumination

Yes

Sensor size

1/2.7 CMOS

Microphone

Built-in

Electronic Shutter Speed

1/3 s–1/100,000 s

Alarm In

1

Alarm Out

1

Audio-In

1

Audio-Out

1

MicroSD Card Slot

1

RJ45

1

Supports card capacities up to

256GB

Power options

12V/PoE

Power supply requirements

12 VDC/PoE (802.3af)

Environment

Outdoor

Operating temperature range

–30 °C to +60 °C

Dimensions

127.6 mm × Φ122.0 mm

Units per Shipping Box

1

Shipping Box Depth

17.5 cm

Shipping Box Height

17 cm

Shipping Box Weight

1.1 kg

Shipping Box Width

17 cm

Unit Calculated Volume

0.005058 cubm

Product Net Weight

0.885 kg

Unit Calculated Weight

1.1 kg

Unit Box Width

0.17

Unit Box Length

0.175

Unit Box Height

0.17

Full Description Line

Type Outdoor|Pixel Resolution 5 Mega Pixel|IR Illumination|Sensor size 1/2.7 CMOS|Microphone Built-in|Electronic Shutter Speed 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xMicroSD Card Slot|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12 VDC/PoE (802.3af)|Environment Outdoor|Operating temperature range –30 °C to +60 °C|Dimensions 127.6 mm × Φ122.0 mm
