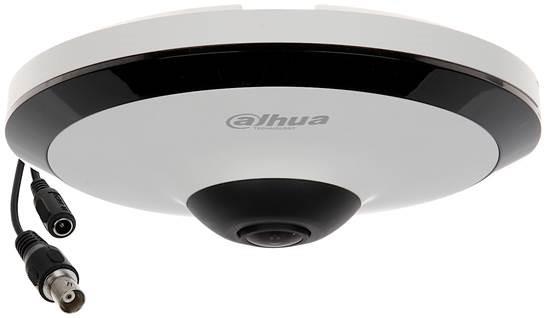

NET CAMERA 5MP FISHEYE IR DOME/IPC-EW5541-AS DAHUA

1/2.7” 5MP progressive scan CMOS,

2592×1944 @ 25FPS

Minimum illumination: 0.006 [email protected] (Color, 30IRE). 0.0006 [email protected] (B/W, 30IRE), 0 Lux (Illuminator on)

Illumination Distance: 10 m

True Day/Night ICR, BLC/HLC/True WDR 120 dB/3D DNR

1.4 mm fixed lens (180°)

Memory Slot: Micro SD, Max 256GB,

1/1 Alarm In/Out, 1/1 Audio In/Out (+Built in Mic)

H.265; H.264; H.264H; H.264B; MJPEG encoding, ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P

No protection, indoor use only, -10°C~+50°C, PoE / 12VDC power, 7.3W, metal + plastic case

IVS (Perimeter Protection): Tripwire; intrusion

Support people counting in area, and displaying and outputting yearly/monthly/daily reports (matching devices are needed); support people counting in 4 areas

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Free IP monitoring software available

Advanced Intelligent Functions: Tripwire, Intrusion, Heat map, People counting

Description

1/2.7” 5MP progressive scan CMOS,

2592×1944 @ 25FPS

Minimum illumination: 0.006 [email protected] (Color, 30IRE). 0.0006 [email protected] (B/W, 30IRE), 0 Lux (Illuminator on)

Illumination Distance: 10 m

True Day/Night ICR, BLC/HLC/True WDR 120 dB/3D DNR

1.4 mm fixed lens (180°)

Memory Slot: Micro SD, Max 256GB,

1/1 Alarm In/Out, 1/1 Audio In/Out (+Built in Mic)

H.265; H.264; H.264H; H.264B; MJPEG encoding, ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P

No protection, indoor use only, -10°C~+50°C, PoE / 12VDC power, 7.3W, metal + plastic case

IVS (Perimeter Protection): Tripwire; intrusion

Support people counting in area, and displaying and outputting yearly/monthly/daily reports (matching devices are needed); support people counting in 4 areas

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Free IP monitoring software available

Advanced Intelligent Functions: Tripwire, Intrusion, Heat map, People counting

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-Series/Panoramic-Series/Fisheye/IPC-EW5541-AS

Category Code

FNC

Unit Box Height

0.14

Unit Box Length

0.16

Unit Box Width

0.16

Аудио вход

1

Аудио выход

1

Слот MicroSD карты

1

Тревожный вход

1

Тревожный выход

1

Дизайн

Other

Разрешение

5 Мпикс

Фокусное расстояние

1.4 mm

Матрица

1/2.7

Микрофон

Да

Крепление объектива

M12

Минимальное освещение

0.006 лк

Скорость электронного затвора

Auto/Manual 1/3 s–1/100,000 s

Поддерживает емкость карты до

256GB

Параметры питания

12V/PoE

Требования к электропитанию

12V DC/PoE

Потребляемая мощность

7.3 Вт

Тип

Уличная

Диапазон рабочих температур

–10°C to +50°C

Размер

44.6 mm × Φ126.2 mm

Количество в транспортной упаковке

1

Объем

0.003584 м3

Вес без упаковки

0.299 кг

Вес в упаковке

0.488 кг
