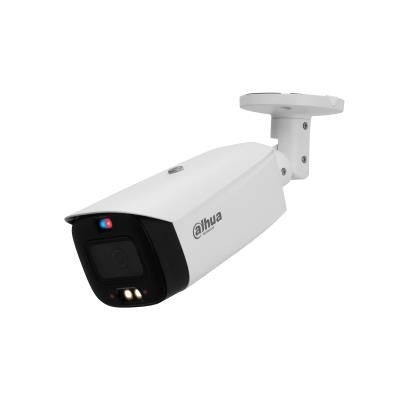

NET CAMERA 5MP IR BULLET AI/HFW3549T1-AS-PV-0280B-S5 DAHUA

> 5-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5 MP (2960 ×1668) @20 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply.
> IP67 protection.
> Sound and light alarm (red and blue lights).
> SMD 4.0.
> Supports AI SSA and one-tap arming and disarming.
> SMD area can be set in warm light areas that support triggering alarms.

Description

> 5-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5 MP (2960 ×1668) @20 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply.
> IP67 protection.
> Sound and light alarm (red and blue lights).
> SMD 4.0.
> Supports AI SSA and one-tap arming and disarming.
> SMD area can be set in warm light areas that support triggering alarms.

Vendor Homepage

www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/TiOC/IPC-HFW3549T1-AS-PV=S5

Camera design

Bullet

Network Camera Type

HDTV/Megapixel/Outdoor

Pixel Resolution

5 Mega Pixel

IR Illumination

Yes

Sensor size

1/2.7

Microphone

Built-in

Lens Mount

M12

Min. Illumination

0.0003 Lux

Effective pixels

2960 (H) × 1688 (V)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Alarm In

1

Alarm Out

1

Audio-In

1

Audio-Out

1

RJ45

1

Supports card capacities up to

256GB

Power options

12V/PoE

Power supply requirements

12 VDC/PoE (802.3af)

Power consumption

4.8 Watts

Environment

Outdoor

Operating temperature range

–40 °C to +60 °C

Colour

White

Dimensions

288.4 × 94.4 × 84.7 mm

Units per Shipping Box

8

Shipping Box Depth

57.5 cm

Shipping Box Height

32 cm

Shipping Box Weight

11.3 kg

Shipping Box Width

35.5 cm

Unit Calculated Volume

0.008165 cubm

Product Net Weight

1 kg

Unit Calculated Weight

1.41 kg

Unit Box Width

0.15

Unit Box Length

0.34

Unit Box Height

0.14

Full Description Line

Type HDTV/Megapixel/Outdoor|Pixel Resolution 5 Mega Pixel|IR Illumination|Sensor size 1/2.7|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0003 Lux|Effective pixels 2960 (H) × 1688 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12 VDC/PoE (802.3af)|Environment Outdoor|Operating temperature range –40 °C to +60 °C|Colour White|Dimensions 288.4 × 94.4 × 84.7 mm

Category Code

FNC
