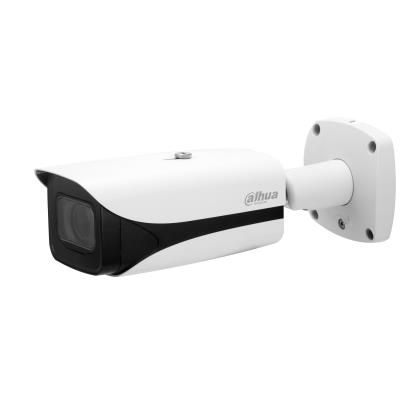

NET CAMERA 5MP IR BULLET AI/IPC-HFW5541E-ZE-27135-S3 DAHUA

- 5-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
- Outputs max. 5MP (2960×1668) @25/30 fps.
- Built-in IR LED, and the max. illumination distance is 60 m.
- ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
- Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC.
- 12 VDC/PoE power supply; ePoE.
- IP67 and IK10 protection.
- SMD 3.0.

Description

- 5-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
- Outputs max. 5MP (2960×1668) @25/30 fps.
- Built-in IR LED, and the max. illumination distance is 60 m.
- ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
- Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC.
- 12 VDC/PoE power supply; ePoE.
- IP67 and IK10 protection.
- SMD 3.0.

Vendor Homepage

www.dahuasecurity.com/ne/products/All-Products/Network-Cameras/WizMind-S-Series/5MP/IPC-HFW5541E-ZE-S3=S3

Model

IPC-HFW5541E-ZE-27135-S3

Camera design

Bullet

Network Camera Type

Outdoor

Pixel Resolution

5 Mega Pixel

IR Illumination

Yes

Sensor size

1/2.7 CMOS

Microphone

Built-in

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Alarm In

2

Alarm Out

1

Audio-In

1

Audio-Out

1

RJ45

1

Power options

12V/PoE

Power supply requirements

12 VDC/PoE (802.3af)/ePoE

Environment

Outdoor

Operating temperature range

–30 °C to +60 °C

Dimensions

–30 °C to +60 °C

Units per Shipping Box

4

Shipping Box Depth

38 cm

Shipping Box Height

30.5 cm

Shipping Box Weight

7.15 kg

Shipping Box Width

31.5 cm

Unit Calculated Volume

0.009127 cubm

Product Net Weight

1.12 kg

Unit Calculated Weight

1.79 kg

Unit Box Width

0.15

Unit Box Length

0.365

Unit Box Height

0.135

Full Description Line

Type Outdoor|Pixel Resolution 5 Mega Pixel|IR Illumination|Sensor size 1/2.7 CMOS|Microphone Built-in|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|2xAlarm In|1xAlarm Out|Power options PoE/12V|Power supply requirements 12 VDC/PoE (802.3af)/ePoE|Environment Outdoor|Operating temperature range –30 °C to +60 °C|Dimensions –30 °C to +60 °C

Category Code

FNC
