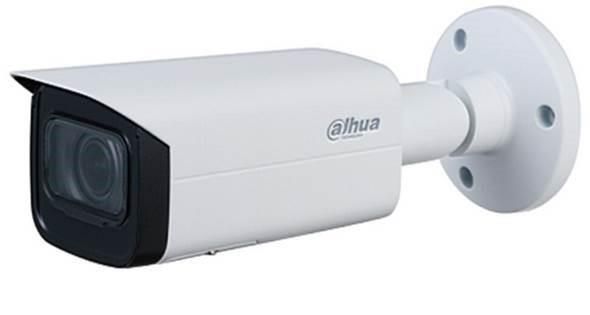

NET CAMERA 5MP IR BULLET AI/IPCHFW3541T-ZAS-27135-S2 DAHUA

- 1/2.7”5Megapixel progressive CMOS, 2960 × 1668 @ 20FPS
- Minimum illumination: 0.005 lux @ F1.5 (Color, 30 IRE), 0.0005 lux @ F1.5 (B/W, 30 IRE), 0 lux (Illuminator on)
- True Day/Night (ICR), BLC / HLC / True WDR 120dB /3D DNR
- Motorized vari-focal 2.7 mm-13.5 mm fixed lens (99°-28°)
- Up to 60 meters Smart IR Illumination
- H.265; H.264; H.264H; H.264B; MJPEG encoding, ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec
- 1/1 Audio I/O, G.711a; G.711Mu; PCM; G.726; G.723 encoding
- 1/1 Alarm I/O
- Micro SD card up to 256GB supported
- Metal case, IP67, IK10, -30°C~+60°C, PoE / 12VDC power, 7.3W max
- Smart capabilities: Tripwire; intrusion (Recognition of human and vehicle). Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
- Free IP monitoring software available

Description

- 1/2.7”5Megapixel progressive CMOS, 2960 × 1668 @ 20FPS
- Minimum illumination: 0.005 lux @ F1.5 (Color, 30 IRE), 0.0005 lux @ F1.5 (B/W, 30 IRE), 0 lux (Illuminator on)
- True Day/Night (ICR), BLC / HLC / True WDR 120dB /3D DNR
- Motorized vari-focal 2.7 mm-13.5 mm fixed lens (99°-28°)
- Up to 60 meters Smart IR Illumination
- H.265; H.264; H.264H; H.264B; MJPEG encoding, ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec
- 1/1 Audio I/O, G.711a; G.711Mu; PCM; G.726; G.723 encoding
- 1/1 Alarm I/O
- Micro SD card up to 256GB supported
- Metal case, IP67, IK10, -30°C~+60°C, PoE / 12VDC power, 7.3W max
- Smart capabilities: Tripwire; intrusion (Recognition of human and vehicle). Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
- Free IP monitoring software available

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/5MP/IPC-HFW3541T-ZAS-S2

Model

HFW3541T-ZAS-27135-S2

Camera design

Bullet

Network Camera Type

HDTV/Megapixel/Outdoor

Pixel Resolution

5 Mega Pixel

Focal Length

2.7 mm-13.5 mm

IR Illumination

Yes

Sensor size

1/2.7”

Lens Mount

M14

Min. Illumination

0.005 Lux

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

Alarm In

1

Alarm Out

1

Audio-In

1

Audio-Out

1

MicroSD Card Slot

1

RJ45

1

Supports card capacities up to

256GB

Power options

12V/PoE

Power supply requirements

12 VDC

Power consumption

7.3 Watts

Environment

Outdoor

Operating temperature range

-30°C~+60°C

Colour

White

Dimensions

244.1 x 79.0 x 75.9 mm

Units per Shipping Box

1

Shipping Box Depth

31 cm

Shipping Box Height

14.5 cm

Shipping Box Weight

1.16 kg

Shipping Box Width

15.5 cm

Unit Calculated Volume

0.0069673 cubm

Product Net Weight

0.82 kg

Unit Calculated Weight

1.16 kg

Unit Box Width

0.155

Unit Box Length

0.31

Unit Box Height

0.145

Full Description Line

Type HDTV/Megapixel/Outdoor|Pixel Resolution 5 Mega Pixel|Focal Length 2.7 mm-13.5 mm|IR Illumination|Sensor size 1/2.7”|Lens Mount M14|Min. Illumination 0.005 Lux|Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s|1xAudio-In|1xAudio-Out|1xMicroSD Card Slot|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12 VDC|Environment Outdoor|Operating temperature range -30°C~+60°C|Colour White|Dimensions 244.1 x 79.0 x 75.9 mm
