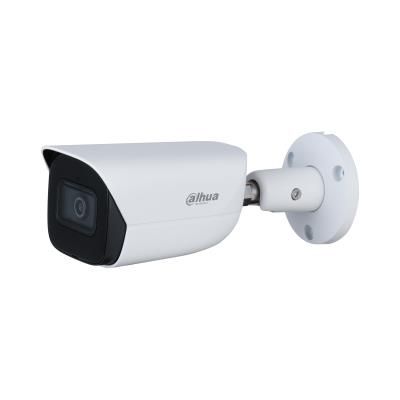

NET CAMERA 5MP IR BULLET/HFW5541E-ASE-0360B-S3 DAHUA

1/2.7” 5Megapixel progressive CMOS, 2960 × 1668 @ 30FPS max

Minimum illumination: 0.0009 lux @F1.6 (Color, 30 IRE); 0.0005 lux @F1.6 (B/W, 30 IRE); 0 lux (Illuminator on)

True Day/Night (ICR), BLC/HLC/True WDR 120 dB/3D DNR

3.6 mm fixed lens (92° HFOV)

Up to 50 meters IR LED Illumination

H.265; H.264; H.264H; H.264B; MJPEG encoding, ONVIF (Profile S/Profile G/Profile T); CGI

Built-in MIC, 1/1 Audio I/O, 1/1 Alarm I/O

Micro SD card up to 256GB supported

Metal case, IP67, -40°C~+60°C, PoE / 12VDC power, 6.8W max

With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, people counting, etc.

Free IP monitoring software available

Description

1/2.7” 5Megapixel progressive CMOS, 2960 × 1668 @ 30FPS max

Minimum illumination: 0.0009 lux @F1.6 (Color, 30 IRE); 0.0005 lux @F1.6 (B/W, 30 IRE); 0 lux (Illuminator on)

True Day/Night (ICR), BLC/HLC/True WDR 120 dB/3D DNR

3.6 mm fixed lens (92° HFOV)

Up to 50 meters IR LED Illumination

H.265; H.264; H.264H; H.264B; MJPEG encoding, ONVIF (Profile S/Profile G/Profile T); CGI

Built-in MIC, 1/1 Audio I/O, 1/1 Alarm I/O

Micro SD card up to 256GB supported

Metal case, IP67, -40°C~+60°C, PoE / 12VDC power, 6.8W max

With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, people counting, etc.

Free IP monitoring software available

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-S-Series/5MP/IPC-HFW5541E-ASE=S3

Model

IPC-HFW5541E-ASE-0360B-S3

Camera design

Bullet

Network Camera Type

HDTV/Megapixel/Outdoor

Pixel Resolution

5 Mega Pixel

Focal Length

3.6 mm

IR Illumination

Yes

Sensor size

1/2.7”

Microphone

Built-in

Lens Mount

M12

Min. Illumination

0.0009 Lux

Effective pixels

2960 (H) × 1668 (V)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Alarm In

1

Alarm Out

1

Audio-In

1

Audio-Out

1

RJ45

1

Supports card capacities up to

256GB

Power options

12V/PoE

Power supply requirements

PoE / 12VDC power, 6.8W max

Power consumption

6.8 Watts

Environment

Outdoor

Operating temperature range

-40°C~+60°C

Colour

White

Dimensions

192.7 mm × 70.5 mm × 66.4 mm

Units per Shipping Box

1

Shipping Box Depth

22 cm

Shipping Box Height

10 cm

Shipping Box Weight

0.78 kg

Shipping Box Width

11 cm

Unit Calculated Volume

0.00242 cubm

Product Net Weight

0.59 kg

Unit Calculated Weight

0.78 kg

CnCode

85258900

Unit Box Width

0.11

Unit Box Length

0.22

Unit Box Height

0.1

Full Description Line

Type HDTV/Megapixel/Outdoor|Pixel Resolution 5 Mega Pixel|Focal Length 3.6 mm|IR Illumination|Sensor size 1/2.7”|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0009 Lux|Effective pixels 2960 (H) × 1668 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements PoE / 12VDC power, 6.8W max|Environment Outdoor|Operating temperature range -40°C~+60°C|Colour White|Dimensions 192.7 mm × 70.5 mm × 66.4 mm

Category Code

FNC
