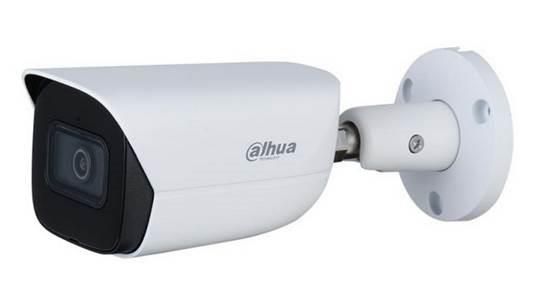

NET CAMERA 5MP IR BULLET/IPC-HFW3541E-AS-0280B-S2 DAHUA

- 1/2.7 ” CMOS, 2960 × 1668 @20FPS
- Minimum illumination: 0.005 lux @ F1.4 (Color, 30 IRE); 0.0005 lux @ F1.4 (B/W, 30 IRE); 0 lux (Illuminator on)
- True Day/Night (ICR), BLC / HLC / True WDR 120dB /3D DNR
- 2.8 mm fixed lens (111°)
- Up to 50 meters Smart IR Illumination
- ONVIF(Profile S/Profile G/Profile T);CGI;P2P;Milestone;
- 1/1 Alarm I/O, 1/1 Audio I/O, Built-in MIC
- Micro SD card up to 256GB supported
- Metal case, IP67, -40°C~+60°C, PoE / 12VDC power, 5.3W max
- Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
- Free IP monitoring software available

Description

- 1/2.7 ” CMOS, 2960 × 1668 @20FPS
- Minimum illumination: 0.005 lux @ F1.4 (Color, 30 IRE); 0.0005 lux @ F1.4 (B/W, 30 IRE); 0 lux (Illuminator on)
- True Day/Night (ICR), BLC / HLC / True WDR 120dB /3D DNR
- 2.8 mm fixed lens (111°)
- Up to 50 meters Smart IR Illumination
- ONVIF(Profile S/Profile G/Profile T);CGI;P2P;Milestone;
- 1/1 Alarm I/O, 1/1 Audio I/O, Built-in MIC
- Micro SD card up to 256GB supported
- Metal case, IP67, -40°C~+60°C, PoE / 12VDC power, 5.3W max
- Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
- Free IP monitoring software available

Vendor Homepage

www.dahuasecurity.com

Model

IPC-HFW3541E-AS-0280B-S2

Camera design

Bullet

Network Camera Type

Outdoor

Pixel Resolution

5 Mega Pixel

Focal Length

2.8 mm

IR Illumination

Yes

Sensor size

1/2.7 ” CMOS

Microphone

Built-in

Lens Mount

M12

Min. Illumination

0.0005 Lux

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

Alarm In

1

Alarm Out

1

Audio-In

1

Audio-Out

1

MicroSD Card Slot

1

RJ45

1

Supports card capacities up to

256GB

Power options

12V/PoE

Power supply requirements

PoE / 12VDC power

Power consumption

5.3 Watts

Environment

Outdoor

Operating temperature range

40°C~+60°C

Dimensions

192.7 mm × 70.5 mm × 66.4 mm

Units per Shipping Box

1

Shipping Box Depth

25 cm

Shipping Box Height

14 cm

Shipping Box Weight

0.766 kg

Shipping Box Width

11.5 cm

Unit Calculated Volume

0.004025 cubm

Product Net Weight

0.59 kg

Unit Calculated Weight

0.766 kg

Unit Box Width

0.115

Unit Box Length

0.25

Unit Box Height

0.14

Full Description Line

Type Outdoor|Pixel Resolution 5 Mega Pixel|Focal Length 2.8 mm|IR Illumination|Sensor size 1/2.7 ” CMOS|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0005 Lux|Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s|1xAudio-In|1xAudio-Out|1xMicroSD Card Slot|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements PoE / 12VDC power|Environment Outdoor|Operating temperature range 40°C~+60°C|Dimensions 192.7 mm × 70.5 mm × 66.4 mm

Category Code

FNC
