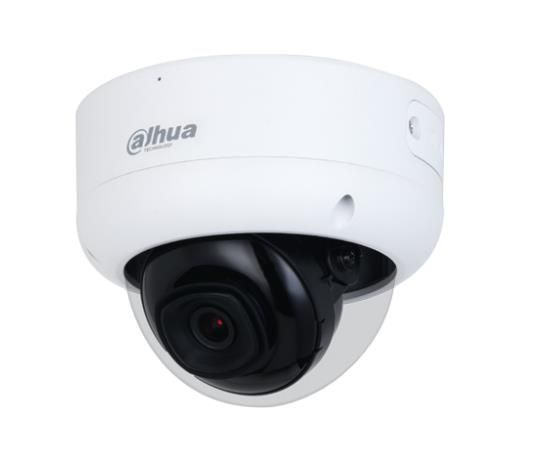

NET CAMERA 5MP IR DOME/HDBW3541E-AS-0280B-S2 DAHUA

- 1/2.7” 5Megapixel progressive CMOS, 2592×1944 @20FPS
- Minimum illumination: 0.005 lux @ F1.4 (Color, 30 IRE); 0.0005 lux @ F1.4 (B/W, 30 IRE); 0 lux (Illuminator on)
- True Day/Night (ICR), BLC / HLC / True WDR 120dB /3D DNR
- 2.8 mm fixed lens (111°)
- Up to 50 meters Smart IR Illumination
- H.265; H.264; H.264B; MJPEG, Smart H.265+; Smart H.264+ encoding, ONVIF (Profile S/Profile G); CGI; P2P
- 1/1 Audio I/O, 1/1 Alarm I/O
- Micro SD card up to 256GB supported, Built-in MIC
- Metal case, IP67, IK10, -40°C~+60°C, PoE / 12VDC power, 8.5W max
- Smart capabilities: Tripwire; intrusion, SMD 4.0, AI SSA
- Free IP monitoring software available

Description

- 1/2.7” 5Megapixel progressive CMOS, 2592×1944 @20FPS
- Minimum illumination: 0.005 lux @ F1.4 (Color, 30 IRE); 0.0005 lux @ F1.4 (B/W, 30 IRE); 0 lux (Illuminator on)
- True Day/Night (ICR), BLC / HLC / True WDR 120dB /3D DNR
- 2.8 mm fixed lens (111°)
- Up to 50 meters Smart IR Illumination
- H.265; H.264; H.264B; MJPEG, Smart H.265+; Smart H.264+ encoding, ONVIF (Profile S/Profile G); CGI; P2P
- 1/1 Audio I/O, 1/1 Alarm I/O
- Micro SD card up to 256GB supported, Built-in MIC
- Metal case, IP67, IK10, -40°C~+60°C, PoE / 12VDC power, 8.5W max
- Smart capabilities: Tripwire; intrusion, SMD 4.0, AI SSA
- Free IP monitoring software available

Vendor Homepage

www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/3-Series/5MP/IPC-HDBW3541E-AS-S2

Model

IPC-HDBW3541E-AS-0280B-S2

Camera design

Dome

Network Camera Type

Fixed Dome/Outdoor

Pixel Resolution

5 Mega Pixel

Focal Length

2.8 mm

IR Illumination

Yes

Sensor size

1/2.7” CMOS

Microphone

Built-in

Lens Mount

M12

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

Alarm In

1

Alarm Out

1

Audio-In

1

Audio-Out

1

MicroSD Card Slot

1

RJ45

1

Supports card capacities up to

256GB

Power options

12V/PoE

Power supply requirements

PoE / 12VDC power

Power consumption

8.5 Watts

Environment

Outdoor

Operating temperature range

-40°C~+60°C

Dimensions

81 mm × Φ109.9 mm

Units per Shipping Box

1

Shipping Box Depth

16 cm

Shipping Box Height

14 cm

Shipping Box Weight

0.7 kg

Shipping Box Width

16 cm

Unit Calculated Volume

0.003584 cubm

Product Net Weight

0.378 kg

Unit Calculated Weight

0.7 kg

CnCode

85258900

Unit Box Width

0.16

Unit Box Length

0.16

Unit Box Height

0.14

Full Description Line

Type Fixed Dome/Outdoor|Pixel Resolution 5 Mega Pixel|Focal Length 2.8 mm|IR Illumination|Sensor size 1/2.7” CMOS|Microphone Built-in|Lens Mount M12|Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s|1xAudio-In|1xAudio-Out|1xMicroSD Card Slot|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements PoE / 12VDC power|Environment Outdoor|Operating temperature range -40°C~+60°C|Dimensions 81 mm × Φ109.9 mm

Category Code

FNC
