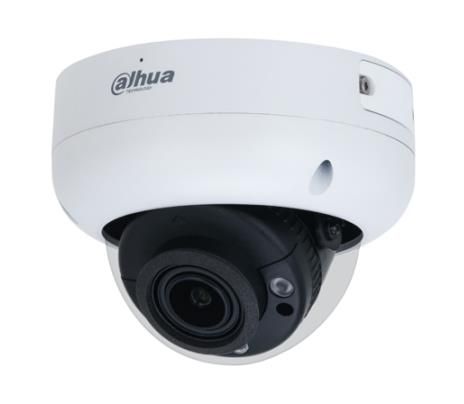

NET CAMERA 5MP IR DOME/HDBW3541R-ZAS-27135-S2 DAHUA

- 1/2.7” CMOS, 2592×1944 @ 20FPS
- Minimum illumination: 0.005 lux @ F1.5 (Color, 30 IRE); 0.0005 lux @ F1.5 (B/W, 30 IRE); 0 lux (Illuminator on)
- True Day/Night (ICR), BLC / HLC / True WDR 120dB /3D DNR
- Motorized vari-focal 2.7 mm-13.5 mm fixed lens (114°–32°)
- Up to 40 meters Smart IR Illumination
- H.265; H.264; H.264B; MJPEG, Smart H.265+; Smart H.264+ encoding, ONVIF (Profile S/Profile G); CGI; P2P
- 1/1 Alarm I/O, 1/1 Audio I/O, Built-in MIC
- Micro SD card up to 256GB supported
- Metal case, IP67, IK10, -30°C~+60°C, PoE / 12VDC power, 9.2W max
- Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
- Free IP monitoring software available

Description

- 1/2.7” CMOS, 2592×1944 @ 20FPS
- Minimum illumination: 0.005 lux @ F1.5 (Color, 30 IRE); 0.0005 lux @ F1.5 (B/W, 30 IRE); 0 lux (Illuminator on)
- True Day/Night (ICR), BLC / HLC / True WDR 120dB /3D DNR
- Motorized vari-focal 2.7 mm-13.5 mm fixed lens (114°–32°)
- Up to 40 meters Smart IR Illumination
- H.265; H.264; H.264B; MJPEG, Smart H.265+; Smart H.264+ encoding, ONVIF (Profile S/Profile G); CGI; P2P
- 1/1 Alarm I/O, 1/1 Audio I/O, Built-in MIC
- Micro SD card up to 256GB supported
- Metal case, IP67, IK10, -30°C~+60°C, PoE / 12VDC power, 9.2W max
- Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
- Free IP monitoring software available

Vendor Homepage

www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/3-Series/5MP/IPC-HDBW3541R-ZAS-S2

Model

IPC-HDBW3541R-ZAS-27135-S2

Camera design

Dome

Network Camera Type

Outdoor

Pixel Resolution

5 Mega Pixel

Focal Length

2.7 mm-13.5 mm

IR Illumination

Yes

Sensor size

1/2.7” CMOS

Min. Illumination

0.0005 Lux

Alarm In

1

Alarm Out

1

Audio-In

1

Audio-Out

1

MicroSD Card Slot

1

RJ45

1

Supports card capacities up to

256GB

Power options

12V/PoE

Power supply requirements

PoE / 12VDC power

Power consumption

9.2 Watts

Environment

Outdoor

Operating temperature range

-30°C~+60°C

Dimensions

94 mm × Φ122 mm

Units per Shipping Box

1

Shipping Box Depth

19 cm

Shipping Box Height

16.5 cm

Shipping Box Weight

0.8 kg

Shipping Box Width

19 cm

Unit Calculated Volume

0.005956 cubm

Product Net Weight

0.713 kg

Unit Calculated Weight

0.8 kg

CnCode

85258900

Unit Box Width

0.19

Unit Box Length

0.19

Unit Box Height

0.165

Full Description Line

Type Outdoor|Pixel Resolution 5 Mega Pixel|Focal Length 2.7 mm-13.5 mm|IR Illumination|Sensor size 1/2.7” CMOS|Min. Illumination 0.0005 Lux|1xAudio-In|1xAudio-Out|1xMicroSD Card Slot|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements PoE / 12VDC power|Environment Outdoor|Operating temperature range -30°C~+60°C|Dimensions 94 mm × Φ122 mm

Category Code

FNC
