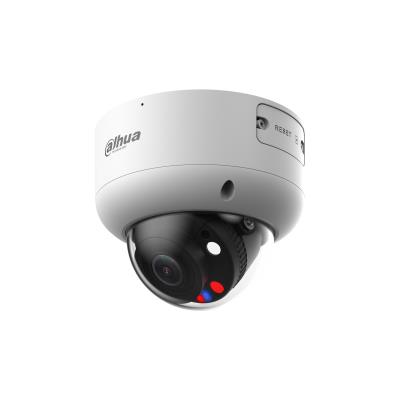

NET CAMERA 5MP IR DOME/HDBW3549R1-ZASPV27135S5 DAHUA

5MP Smart Dual Light Active Deterrence Vari-focal Dome WizSense Network Camera
> 5-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5 MP (2960 × 1668) @20 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light and IR LED; the max. IR illumination distance is 50 m and warm light distance is 40 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection; face detection (full image).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply.
> IP67 and IK10 protection.
> Sound and light alarm (red and blue lights).
> SMD 4.0.
> Supports AI SSA and one-tap arming and disarming.
> SMD area can be set in warm light areas that support triggering alarms.
> Focal Length: 2.7 mm–13.5 mm
> Field of View: 113°–36°

Description

5MP Smart Dual Light Active Deterrence Vari-focal Dome WizSense Network Camera
> 5-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5 MP (2960 × 1668) @20 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light and IR LED; the max. IR illumination distance is 50 m and warm light distance is 40 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection; face detection (full image).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply.
> IP67 and IK10 protection.
> Sound and light alarm (red and blue lights).
> SMD 4.0.
> Supports AI SSA and one-tap arming and disarming.
> SMD area can be set in warm light areas that support triggering alarms.
> Focal Length: 2.7 mm–13.5 mm
> Field of View: 113°–36°

Vendor Homepage

www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/3-Series/TiOC/IPC-HDBW3549R1-ZAS-PV=S5

Category Code

FNC

RJ45

1

Аудио вход

1

Аудио выход

1

Тревожный вход

1

Тревожный выход

1

Модель

IPC-HDBW3549R1-ZAS-PV

Дизайн

Dome

Тип устройства

Fixed Dome/HDTV/Megapixel/Outdoor

Разрешение

Auto/Manual 1/3 s–1/100,000 s

Фокусное расстояние

2.7 mm–13.5 mm

Инфракрасная подсветка

Да

Матрица

1/2.7

Микрофон

Да

Крепление объектива

M16

Минимальное освещение

0.0003 лк

Скорость электронного затвора

Auto/Manual 1/3 s–1/100,000 s

Поддерживает емкость карты до

256GB

Параметры питания

12V/PoE

Требования к электропитанию

12 VDC/PoE (802.3af)

Потребляемая мощность

9.2 Вт

Тип

Уличная

Диапазон рабочих температур

–30 °C to +60 °C

Цвет

Белый

Размер

105 mm × Φ126.0 mm

Количество в палете

0

Количество в транспортной упаковке

1

Объем

0.002734 м3

Вес без упаковки

0.7 кг

Вес в упаковке

0.707 кг
