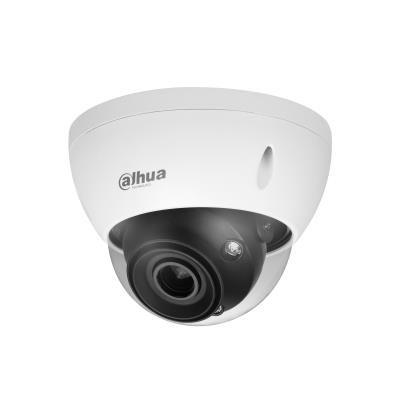

NET CAMERA 5MP IR DOME/HDBW5541E-ZE-27135-S3 DAHUA

5MP IR Vari-focal Vandal-proof Dome WizMind Network Camera

> 5-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5MP (2960×1668) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card, built-in MIC.
> 24V AC/12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection.
> SMD 3.0.
> Focal Length 2.7 mm–13.5 mm, Field of View H: 114°–32°

Description

5MP IR Vari-focal Vandal-proof Dome WizMind Network Camera

> 5-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5MP (2960×1668) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card, built-in MIC.
> 24V AC/12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection.
> SMD 3.0.
> Focal Length 2.7 mm–13.5 mm, Field of View H: 114°–32°

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-S-Series/5MP/IPC-HDBW5541E-ZE=S3

Model

IPC-HDBW5541E-ZE-27135-S3

Network Camera Type

Fixed Dome/HDTV/Megapixel/Outdoor

Pixel Resolution

5 Mega Pixel

Focal Length

2.7 mm–13.5 mm

IR Illumination

Yes

Sensor size

1/2.7 CMOS

Microphone

Built-in

Min. Illumination

0.0005 Lux

Effective pixels

2960 (H) × 1668 (V)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Alarm In

1

Alarm Out

1

Audio-In

1

Audio-Out

1

MicroSD Card Slot

1

RJ45

1

Supports card capacities up to

1TB

Power supply requirements

12 VDC/24 VAC/PoE (802.3af)/ePoE

Environment

Outdoor

Operating temperature range

–30 °C to +60 °C

Colour

White

Dimensions

Φ159.1 mm × 118.1 mm

Units per Shipping Box

1

Unit Calculated Volume

0.007447 cubm

Product Net Weight

0.91 kg

Unit Calculated Weight

1.22 kg

Full Description Line

Type Fixed Dome/HDTV/Megapixel/Outdoor|Pixel Resolution 5 Mega Pixel|Focal Length 2.7 mm–13.5 mm|IR Illumination|Sensor size 1/2.7 CMOS|Microphone Built-in|Min. Illumination 0.0005 Lux|Effective pixels 2960 (H) × 1668 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xMicroSD Card Slot|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 1TB|Power supply requirements 12 VDC/24 VAC/PoE (802.3af)/ePoE|Environment Outdoor|Operating temperature range –30 °C to +60 °C|Colour White|Dimensions Φ159.1 mm × 118.1 mm

Category Code

FNC
