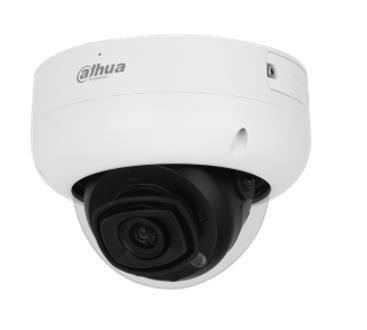

NET CAMERA 5MP IR DOME/HDBW5541R-ASE-0280B-S3 DAHUA

> 5-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5 MP (2960×1668) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 50 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC.
> 12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection.
> SMD 3.0.

Description

> 5-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5 MP (2960×1668) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 50 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC.
> 12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection.
> SMD 3.0.

Vendor Homepage

www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizMind-S-Series/5MP/IPC-HDBW5541R-ASE-S3=S3

Model

IPC-HDBW5541R-ASE-0280B-S3

Camera design

Dome

Network Camera Type

Fixed Dome/HDTV/Megapixel/Outdoor

Pixel Resolution

5 Mega Pixel

IR Illumination

Yes

Sensor size

1/2.7

Microphone

Built-in

Lens Mount

M12

Min. Illumination

0.0005 Lux

Effective pixels

2960 (H) × 1668 (V)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Alarm In

1

Alarm Out

1

Audio-In

1

Audio-Out

1

RJ45

1

Supports card capacities up to

512GB

Power options

12V/PoE

Power supply requirements

12 VDC/PoE (802.3af)/ePoE

Power consumption

5.2 Watts

Environment

Outdoor

Operating temperature range

–40 °C to +60 °C

Colour

White

Dimensions

94.0 mm × Φ122.0 mm

Units per Shipping Box

1

Shipping Box Depth

15 cm

Shipping Box Height

14 cm

Shipping Box Weight

0.75 kg

Shipping Box Width

14.2 cm

Unit Calculated Volume

0.002982 cubm

Product Net Weight

0.7129 kg

Unit Calculated Weight

0.75 kg

Unit Box Width

0.142

Unit Box Length

0.15

Unit Box Height

0.14

Full Description Line

Type Fixed Dome/HDTV/Megapixel/Outdoor|Pixel Resolution 5 Mega Pixel|IR Illumination|Sensor size 1/2.7|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0005 Lux|Effective pixels 2960 (H) × 1668 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 512GB|Power options PoE/12V|Power supply requirements 12 VDC/PoE (802.3af)/ePoE|Environment Outdoor|Operating temperature range –40 °C to +60 °C|Colour White|Dimensions 94.0 mm × Φ122.0 mm

Category Code

FNC
