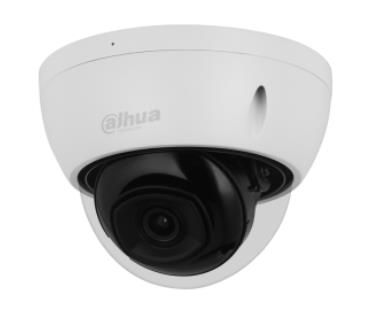

NET CAMERA 5MP IR DOME/IPC-HDBW2541E-S-0280B-S2 DAHUA

> 5-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5 MP (2960 × 1668) @20 fps, and supports 2688 ×1520 (2688 × 1520) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, and the max. illumination distance is 30 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/PoE power supply, easy for installation.
> IP67, IK10 protection.
> SMD Plus.

Description

> 5-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5 MP (2960 × 1668) @20 fps, and supports 2688 ×1520 (2688 × 1520) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, and the max. illumination distance is 30 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/PoE power supply, easy for installation.
> IP67, IK10 protection.
> SMD Plus.

Vendor Homepage

www.dahuasecurity.com/la/products/All-Products/Network-Cameras/WizSense-Series/2-Series/5MP/IPC-HDBW2541E-S=S2

Model

DHI-IPC-HDBW2541E-S-0280B-S2

Camera design

Dome

Network Camera Type

Fixed Dome/HDTV/Megapixel/Outdoor

Pixel Resolution

5 Mega Pixel

IR Illumination

Yes

Sensor size

1/2.7

Microphone

Built-in

Lens Mount

M12

Min. Illumination

0.0007 Lux

Effective pixels

2960 (H) × 1668 (V)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

RJ45

1

Supports card capacities up to

256GB

Power options

12V/PoE

Environment

Outdoor

Operating temperature range

–40 °C to +60 °C

Colour

White

Dimensions

81.0 mm × Φ109.9 mm

Units per Shipping Box

1

Shipping Box Depth

14 cm

Shipping Box Height

11.5 cm

Shipping Box Weight

0.52 kg

Shipping Box Width

13.5 cm

Unit Calculated Volume

0.002174 cubm

Product Net Weight

0.34 kg

Unit Calculated Weight

0.52 kg

Unit Box Width

0.135

Unit Box Length

0.14

Unit Box Height

0.115

Full Description Line

Type Fixed Dome/HDTV/Megapixel/Outdoor|Pixel Resolution 5 Mega Pixel|IR Illumination|Sensor size 1/2.7|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0007 Lux|Effective pixels 2960 (H) × 1668 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xRJ45|Supports card capacities up to 256GB|Power options PoE/12V|Environment Outdoor|Operating temperature range –40 °C to +60 °C|Colour White|Dimensions 81.0 mm × Φ109.9 mm

Category Code

FNC
