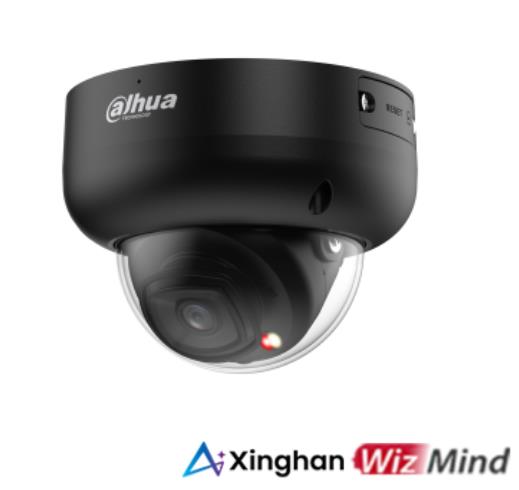

NET CAMERA 5MP IR DOME/IPC-HDBW5559RASEIL0280BB DAHUA

>5-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
>Outputs max. 5 MP (2960 × 1668) @25/30 fps.
>Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 50 m.
>ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
>Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
>Powered by the Xinghan Large-Scale AI Models-Vision, the camera outstandingly delivers on its object detection, recognition, and scene adaptation functions.
>With deep learning algorithm, it supports: AcuPick, video metadata, IVS, face detection, and people counting, etc.
>Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card; built-in Mic
>12 VDC/PoE power supply; ePoE
>IP67 and IK10 protection.
> Field of View: 108.4°

Description

>5-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
>Outputs max. 5 MP (2960 × 1668) @25/30 fps.
>Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 50 m.
>ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
>Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
>Powered by the Xinghan Large-Scale AI Models-Vision, the camera outstandingly delivers on its object detection, recognition, and scene adaptation functions.
>With deep learning algorithm, it supports: AcuPick, video metadata, IVS, face detection, and people counting, etc.
>Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card; built-in Mic
>12 VDC/PoE power supply; ePoE
>IP67 and IK10 protection.
> Field of View: 108.4°

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-5-Series/Smart-Dual-Light/5MP/IPC-HDBW5559R-ASE-IL

Category Code

FNC

Alarm In

1

Alarm Out

1

Audio-In

1

Audio-Out

1

RJ45

1

Model

IPC-HDBW5559R-ASE-IL0280B-B

Camera design

Dome

Network Camera Type

Fixed Dome/HDTV/Megapixel/Outdoor

Resolution

5 Mega Pixel

Focal Length

2.8mm

IR Illumination

Yes

Sensor size

1/2.7

Microphone

Built-in

Lens Mount

M12

Min. Illumination

0.0005 Lux

Effective pixels

Auto/Manual 1/3 s–1/100,000 s

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Supports card capacities up to

1TB

Power options

12V/PoE

Power supply requirements

12 VDC (±30%); PoE+ (802.3at); ePoE

Power consumption

15.6 Watts

Environment

Outdoor

Operating temperature range

–40 °C to +60 °C

Colour

Black

Dimensions

94 mm × Φ122 mm

Units per Shipping Box

1

Unit Calculated Volume

0.007447 cubm

Product Net Weight

0.713 kg

Unit Calculated Weight

0.986 kg
