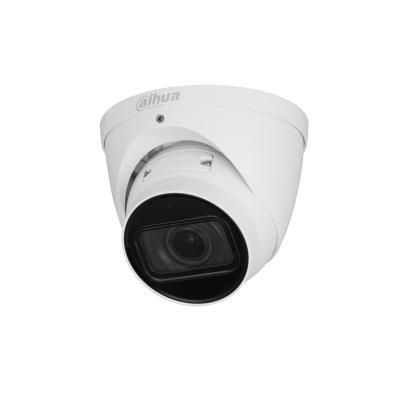

NET CAMERA 5MP IR EYEBALL AI/IPC-HDW3541T-ZS-27135S2 DAHUA

5MP IR Vari-focal Eyeball WizSense Network Camera
> 5-MP 1/2.7 CMOS image sensor, excellent low luminance performance and high definition of images.
> Outputs max. 5 MP (2960 × 1668) @20 fps and supports 4MP (2688 × 1520) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, max. IR distance: 40 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Max. 256 G Micro SD card. built-in Mic.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD 4.0, AI SSA.

Description

5MP IR Vari-focal Eyeball WizSense Network Camera
> 5-MP 1/2.7 CMOS image sensor, excellent low luminance performance and high definition of images.
> Outputs max. 5 MP (2960 × 1668) @20 fps and supports 4MP (2688 × 1520) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, max. IR distance: 40 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Max. 256 G Micro SD card. built-in Mic.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD 4.0, AI SSA.

Vendor Homepage

www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/3-Series/5MP/IPC-HDW3541T-ZS-S2=S2

Model

IPC-HDW3541T-ZS-27135-S2

Camera design

Eyeball

Network Camera Type

HDTV/Megapixel/Outdoor

Pixel Resolution

5 Mega Pixel

Focal Length

2.7 mm–13.5 mm

IR Illumination

Yes

Sensor size

1/2.7

Microphone

Built-in

Min. Illumination

0.0005 Lux

Effective pixels

2960 (H) × 1668 (V)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

RJ45

1

Supports card capacities up to

256GB

Power options

12V/PoE

Power supply requirements

Basic: 5.7 W (12 VDC); 6.4 W (PoE) Max. (WDR + IR intensity + Intelligence): 8.9 W (12 VDC); 10.2 W (PoE)

Power consumption

6.4 Watts

Environment

Outdoor

Colour

White

Dimensions

108.3 mm × Φ122 mm

Units per Shipping Box

1

Shipping Box Depth

15.5 cm

Shipping Box Height

13 cm

Shipping Box Weight

0.87 kg

Shipping Box Width

15.5 cm

Unit Calculated Volume

0.003123 cubm

Product Net Weight

0.715 kg

Unit Calculated Weight

0.87 kg

Unit Box Width

0.155

Unit Box Length

0.155

Unit Box Height

0.13

Full Description Line

Type HDTV/Megapixel/Outdoor|Pixel Resolution 5 Mega Pixel|Focal Length 2.7 mm–13.5 mm|IR Illumination|Sensor size 1/2.7|Microphone Built-in|Min. Illumination 0.0005 Lux|Effective pixels 2960 (H) × 1668 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xRJ45|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements Basic: 5.7 W (12 VDC); 6.4 W (PoE) Max. (WDR + IR intensity + Intelligence): 8.9 W (12 VDC); 10.2 W (PoE)|Environment Outdoor|Colour White|Dimensions 108.3 mm × Φ122 mm
