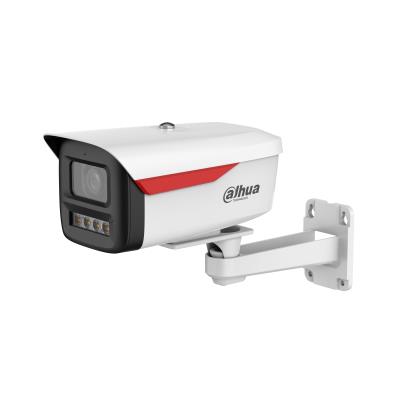

NET CAMERA 6MP BULLET/HFW2649M-S-LED0360BBPRO DAHUA

6MP WizColor Fixed-focal Bullet WizSense Network Camera
> 1/1.8 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 6 MP (3288 × 1850) @20 fps, and supports 4 MP (2688 × 1520) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light, and the max. illumination distance is 50 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Supports max. 256 G Micro SD card; built in Mic.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD Plus.
> 3.6 mm (78°)

Description

6MP WizColor Fixed-focal Bullet WizSense Network Camera
> 1/1.8 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 6 MP (3288 × 1850) @20 fps, and supports 4 MP (2688 × 1520) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light, and the max. illumination distance is 50 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Supports max. 256 G Micro SD card; built in Mic.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD Plus.
> 3.6 mm (78°)

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/WizColor/IPC-HFW2649M-S-B-PRO

Category Code

FNC

RJ45

1

Слот MicroSD карты

1

Модель

IPC-HFW2649M-S-B-PRO

Дизайн

Bullet

Тип устройства

HDTV/Megapixel/Outdoor

Разрешение

3288 (H) × 1850 (V)

Фокусное расстояние

3.6 mm–6 mm

Матрица

1/1.8 CMOS

Микрофон

Да

Крепление объектива

M16

Минимальное освещение

0.0002 лк

Скорость электронного затвора

Auto/Manual 1/3 s–1/100,000 s

Поддерживает емкость карты до

256GB

Параметры питания

12V/PoE

Требования к электропитанию

12 VDC (±30%); PoE (802.3af)

Потребляемая мощность

7.5 Вт

Тип

Уличная

Диапазон рабочих температур

–40 °C to +60 °C

Размер

201.0 mm × 103.8 mm × 97.8 mm

Количество в палете

0

Количество в транспортной упаковке

1

Объем

0.003036 м3

Вес без упаковки

0.68 кг

Вес в упаковке

1.15 кг
