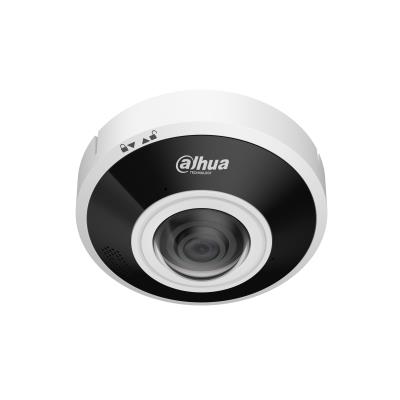

NET CAMERA 6MP FISHEYE DOME/IPC-EBW5641-AS DAHUA

> 6-MP 1/2.5 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 6 MP (2560 × 2560)@25/30 fps.
> 360° fisheye monitoring covers all the corners without any blind zone.
> Supports fisheye front-dewarp and back-dewarp.
> Supports split screen for 2 and 4 windows.
> Built-in IR LED, and the max. illumination distance is 15 m.
> ROI, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: Perimeter Protection, People Counting, Heat map.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1TB Micro SD card;
> Built-in speaker and dual Mic. Supports two-way talk.
> 12 VDC/ PoE(802.3af) power supply.
> IP67 and IK10 protection.
> Focal Length 1.68 mm, Field of View 185*185°

Description

> 6-MP 1/2.5 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 6 MP (2560 × 2560)@25/30 fps.
> 360° fisheye monitoring covers all the corners without any blind zone.
> Supports fisheye front-dewarp and back-dewarp.
> Supports split screen for 2 and 4 windows.
> Built-in IR LED, and the max. illumination distance is 15 m.
> ROI, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: Perimeter Protection, People Counting, Heat map.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1TB Micro SD card;
> Built-in speaker and dual Mic. Supports two-way talk.
> 12 VDC/ PoE(802.3af) power supply.
> IP67 and IK10 protection.
> Focal Length 1.68 mm, Field of View 185*185°

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-Panoramic-Series/Fisheye-Series/IPC-EBW5641-AS

Model

IPC-EBW5641-AS

Camera design

Other

Network Camera Type

HDTV/Megapixel

Pixel Resolution

6 Mega Pixel

Focal Length

1.68 mm

IR Illumination

Yes

Sensor size

1/2.5 CMOS

Microphone

Built-in

Lens Mount

M12

Min. Illumination

0.0006 Lux

Effective pixels

2560 (H) × 2560 (V)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Alarm In

1

Alarm Out

1

Audio-In

1

Audio-Out

1

RJ45

1

Supports card capacities up to

512GB

Power options

PoE

Power supply requirements

12 VDC, 1 A; PoE (802.3af)

Power consumption

10.1 Watts

Environment

Outdoor

Operating temperature range

–30 °C to +60 °C

Colour

White

Dimensions

Φ122 mm × 53.3 mm

Unit Calculated Volume

0.002062 cubm

Product Net Weight

0.46 kg

Unit Calculated Weight

0.75 kg

CnCode

85258900

Full Description Line

Type HDTV/Megapixel|Pixel Resolution 6 Mega Pixel|Focal Length 1.68 mm|IR Illumination|Sensor size 1/2.5 CMOS|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0006 Lux|Effective pixels 2560 (H) × 2560 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 512GB|Power options PoE|Power supply requirements 12 VDC, 1 A; PoE (802.3af)|Environment Outdoor|Operating temperature range –30 °C to +60 °C|Colour White|Dimensions Φ122 mm × 53.3 mm

Category Code

FNC
