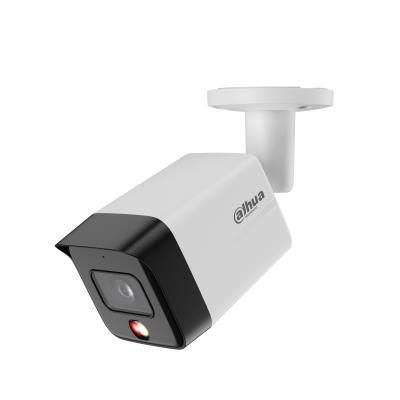

NET CAMERA 6MP IR BULLET/IPC-HFW1639TCAIL0280BS6 DAHUA

6MP Entry Smart Dual Light Fixed-focal Bullet Network Camera
> 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 6 MP (3200 × 1800) @20 fps, and supports 2688 × 1520@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in Multi-core Light, the max. IR distance is 30 m and the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Built in Mic.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> Supports human detection.

Description

6MP Entry Smart Dual Light Fixed-focal Bullet Network Camera
> 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 6 MP (3200 × 1800) @20 fps, and supports 2688 × 1520@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in Multi-core Light, the max. IR distance is 30 m and the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Built in Mic.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> Supports human detection.

Vendor Homepage

www.dahuasecurity.com/la/products/All-Products/Network-Cameras/Entry-Series/6MP/IPC-HFW1639TC-A-IL=S6

Model

IPC-HFW1639TCAIL0280BS6

Camera design

Bullet

Network Camera Type

Fixed/HDTV/Megapixel

Pixel Resolution

6 Mega Pixel

Focal Length

2.8 mm; 3.6 mm

IR Illumination

Yes

Sensor size

1/2.7 CMOS

Microphone

Built-in

Lens Mount

M12

Min. Illumination

0.0007 Lux

Effective pixels

3200 (H) × 1800 (V)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

RJ45

1

Power options

12V/PoE

Power supply requirements

12 VDC/PoE (802.3af)

Operating temperature range

–40 °C to +60 °C

Dimensions

173.3 × 70.0 × 70.0 mm

Units per Shipping Box

20

Shipping Box Depth

55 cm

Shipping Box Height

22 cm

Shipping Box Weight

12.3 kg

Shipping Box Width

42.5 cm

Unit Calculated Volume

0.002571 cubm

Product Net Weight

0.44 kg

Unit Calculated Weight

0.615 kg

Unit Box Width

0.105

Unit Box Length

0.205

Unit Box Height

0.095

Full Description Line

Type Fixed/HDTV/Megapixel|Pixel Resolution 6 Mega Pixel|Focal Length 2.8 mm; 3.6 mm|IR Illumination|Sensor size 1/2.7 CMOS|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0007 Lux|Effective pixels 3200 (H) × 1800 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xRJ45|Power options PoE/12V|Power supply requirements 12 VDC/PoE (802.3af)|Operating temperature range –40 °C to +60 °C|Dimensions 173.3 × 70.0 × 70.0 mm

Category Code

FNC
