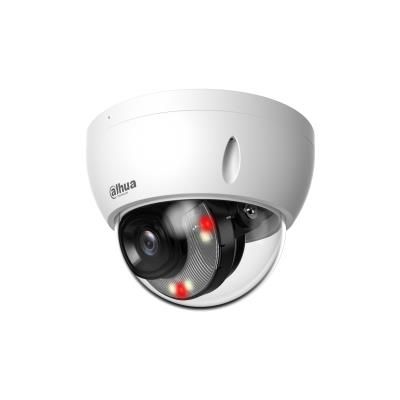

NET CAMERA 6MP IR DOME/IPC-HDBW2649E-S-IL-0280B DAHUA

6MP Smart Dual Light Fixed-focal Dome WizSense Network Camera

>1/2.7 CMOS image sensor, low luminance, and high definition image.
>Outputs max. 6 MP (3288×1850) @20 fps, and supports 2688×1520 (2688 × 1520) @25/30 fps.
>H.265 codec, high compression rate, ultra-low bit rate.
>Built-in warm light and IR LED, the max. IR distance is 30 m and the max. warm light distance is 30 m.
>ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
>Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
>Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
>Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
>Supports max. 256 G Micro SD card; built in Mic.
>12 VDC/PoE power supply, easy for installation.
>IP67, IK10 protection.
>SMD Plus
> Focal Length 2.8 mm; Field of View 112°

Description

6MP Smart Dual Light Fixed-focal Dome WizSense Network Camera

>1/2.7 CMOS image sensor, low luminance, and high definition image.
>Outputs max. 6 MP (3288×1850) @20 fps, and supports 2688×1520 (2688 × 1520) @25/30 fps.
>H.265 codec, high compression rate, ultra-low bit rate.
>Built-in warm light and IR LED, the max. IR distance is 30 m and the max. warm light distance is 30 m.
>ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
>Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
>Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
>Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
>Supports max. 256 G Micro SD card; built in Mic.
>12 VDC/PoE power supply, easy for installation.
>IP67, IK10 protection.
>SMD Plus
> Focal Length 2.8 mm; Field of View 112°

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Light/IPC-HDBW2649E-S-IL

Model

IPC-HDBW2649E-S-IL-0280B

Camera design

Dome

Network Camera Type

Fixed/HDTV/Megapixel

Pixel Resolution

6 Mega Pixel

Focal Length

2.8 mm; 3.6 mm

IR Illumination

Yes

Sensor size

1/2.7 CMOS

Microphone

Built-in

Lens Mount

M12

Min. Illumination

0.0007 Lux

Effective pixels

3288 (H) × 1850 (V)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

RJ45

1

Supports card capacities up to

256GB

Power options

PoE

Power supply requirements

12 VDC; PoE

Power consumption

6.8 Watts

Environment

Outdoor

Operating temperature range

–40 °C to +60 °C

Colour

White

Dimensions

81.0 mm × Φ109.9 mm

Units per Shipping Box

1

Unit Calculated Volume

0.003352 cubm

Product Net Weight

0.34 kg

Unit Calculated Weight

0.684 kg

CnCode

85258900

Full Description Line

Type Fixed/HDTV/Megapixel|Pixel Resolution 6 Mega Pixel|Focal Length 2.8 mm; 3.6 mm|IR Illumination|Sensor size 1/2.7 CMOS|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0007 Lux|Effective pixels 3288 (H) × 1850 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xRJ45|Supports card capacities up to 256GB|Power options PoE|Power supply requirements 12 VDC; PoE|Environment Outdoor|Operating temperature range –40 °C to +60 °C|Colour White|Dimensions 81.0 mm × Φ109.9 mm

Category Code

FNC
