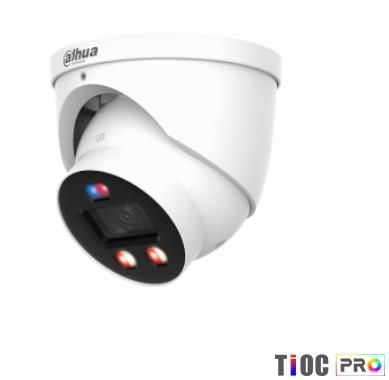

NET CAMERA 6MP IR EYEBALL/HDW3649H-ASPV0280B-PRO DAHUA

> 6-MP 1/1.8 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 6 MP (3288 × 1850)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply.
> IP67 protection.
> Sound and light alarm (red and blue lights).
> SMD 4.0.
> Supports AI SSA and one-tap arming and disarming.
> SMD area can be set in warm light areas that support triggering alarms.

Description

> 6-MP 1/1.8 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 6 MP (3288 × 1850)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply.
> IP67 protection.
> Sound and light alarm (red and blue lights).
> SMD 4.0.
> Supports AI SSA and one-tap arming and disarming.
> SMD area can be set in warm light areas that support triggering alarms.

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/TiOC/IPC-HDW3649H-AS-PV-PRO

Category Code

FNC

Unit Box Height

0.14

Unit Box Length

0.16

Unit Box Width

0.16

RJ45

1

Аудио вход

1

Аудио выход

1

Тревожный вход

1

Тревожный выход

1

Дизайн

Eyeball

Тип устройства

HDTV/Megapixel/Outdoor

Разрешение

3288 (H) × 1850 (V)

Инфракрасная подсветка

Да

Матрица

1/1.8

Микрофон

Да

Крепление объектива

M16

Минимальное освещение

0.0004 лк

Скорость электронного затвора

Auto/Manual 1/3 s–1/100,000 s

Поддерживает емкость карты до

512GB

Параметры питания

12V/PoE

Требования к электропитанию

12 VDC; PoE

Потребляемая мощность

10 Вт

Тип

Уличная

Диапазон рабочих температур

–40 °C to +60 °C

Размер

Φ122.0 mm × 116.1 mm

Количество в транспортной упаковке

1

Объем

0.003584 м3

Вес без упаковки

0.8 кг

Вес в упаковке

1 кг
