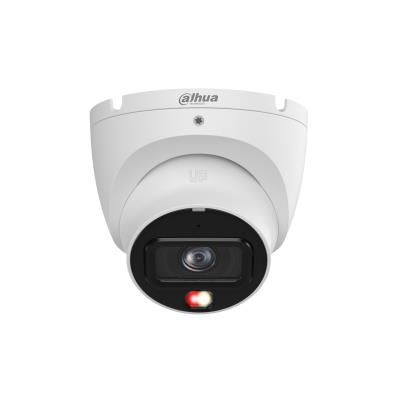

NET CAMERA 6MP IR EYEBALL/IPC-HDW1639TAIL0280BS6 DAHUA

NET CAMERA 6MP IR EYEBALL

6MP Entry Smart Dual Light Fixed-focal Eyeball Network Camera

> 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 6 MP (3200 × 1800) @20 fps, and supports 2688 × 1520@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in Multi-core Light, the max. IR distance is 30 m and the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Built in Mic.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> Supports human detection.

Description

NET CAMERA 6MP IR EYEBALL

6MP Entry Smart Dual Light Fixed-focal Eyeball Network Camera

> 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 6 MP (3200 × 1800) @20 fps, and supports 2688 × 1520@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in Multi-core Light, the max. IR distance is 30 m and the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Built in Mic.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> Supports human detection.

Vendor Homepage

https://material.dahuasecurity.com/uploads/cpq/prm-os-srv-res/smart/datasheetzipfiles/IPC-HDW1639T-A-IL_S6_datasheet_20240702.pdf

Model

IPC-HDW1639TAIL0280BS6

Camera design

Eyeball

Pixel Resolution

6 Mega Pixel

Focal Length

2.8 mm; 3.6 mm

IR Illumination

Yes

Sensor size

1/2.7 CMOS

Microphone

Built-in

Lens Mount

M12

Min. Illumination

0.0007 Lux

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

RJ45

1

Power options

12V/PoE

Power supply requirements

12 VDC/PoE (802.3af)

Power consumption

5.3 Watts

Operating temperature range

–40 °C to +60 °C

Colour

White

Dimensions

85.6 mm × Φ94.0 mm

Units per Shipping Box

20

Shipping Box Depth

57 cm

Shipping Box Height

24 cm

Shipping Box Weight

9.6 kg

Shipping Box Width

24 cm

Unit Calculated Volume

0.001642 cubm

Product Net Weight

0.34 kg

Unit Calculated Weight

0.48 kg

Unit Box Width

0.11

Unit Box Length

0.11

Unit Box Height

0.105

Full Description Line

Pixel Resolution 6 Mega Pixel|Focal Length 2.8 mm; 3.6 mm|IR Illumination|Sensor size 1/2.7 CMOS|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0007 Lux|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xRJ45|Power options PoE/12V|Power supply requirements 12 VDC/PoE (802.3af)|Operating temperature range –40 °C to +60 °C|Colour White|Dimensions 85.6 mm × Φ94.0 mm

Category Code

FNC
