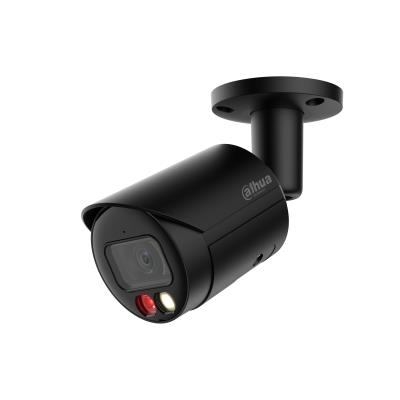

NET CAMERA 8MP BULLET/HFW2849S-S-IL-0280B-B DAHUA

8MP Smart Dual Light Fixed-focal Bullet WizSense Network Camera
> 8-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160) @20 fps, and supports 2688×1520 (2688 × 1520) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light and IR LED, the max. illumination distance is 30 m and the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD Plus.

Description

8MP Smart Dual Light Fixed-focal Bullet WizSense Network Camera
> 8-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160) @20 fps, and supports 2688×1520 (2688 × 1520) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light and IR LED, the max. illumination distance is 30 m and the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD Plus.

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Light/IPC-HFW2849S-S-IL

Model

IPC-HFW2849S-S-IL-0280B-B

Camera design

Bullet

Network Camera Type

HDTV/Megapixel/Outdoor

Pixel Resolution

8 Mega Pixel

IR Illumination

Yes

Sensor size

1/2.7

Microphone

Built-in

Lens Mount

M12

Min. Illumination

0.0008 Lux

Effective pixels

3840 (H) × 2160 (V)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

RJ45

1

Supports card capacities up to

256GB

Power options

12V/PoE

Power supply requirements

12 VDC/PoE (802.3af)

Power consumption

3.4 Watts

Environment

Outdoor

Operating temperature range

–40 °C to +55 °C

Colour

Black

Dimensions

166.2 × 70 × 70 mm

Units per Shipping Box

20

Shipping Box Depth

55 cm

Shipping Box Height

22 cm

Shipping Box Weight

12.9 kg

Shipping Box Width

43.5 cm

Unit Calculated Volume

0.002632 cubm

Product Net Weight

0.47 kg

Unit Calculated Weight

0.645 kg

Unit Box Width

0.105

Unit Box Length

0.205

Unit Box Height

0.095

Full Description Line

Type HDTV/Megapixel/Outdoor|Pixel Resolution 8 Mega Pixel|IR Illumination|Sensor size 1/2.7|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0008 Lux|Effective pixels 3840 (H) × 2160 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xRJ45|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12 VDC/PoE (802.3af)|Environment Outdoor|Operating temperature range –40 °C to +55 °C|Colour Black|Dimensions 166.2 × 70 × 70 mm

Category Code

FNC
