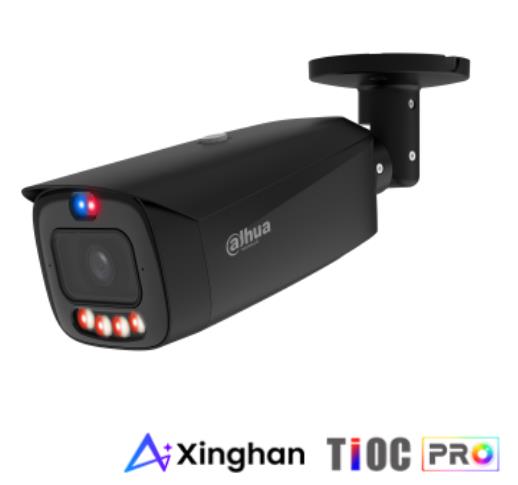

NET CAMERA 8MP BULLET/HFW3849T1-ASPV0280B-PROB DAHUA

> 8-MP 1/1.8 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 ×2160)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 50 m
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual MICs; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply.
> IP67 protection.
> Sound and light alarm (red and blue lights).
> SMD 4.0.
> Supports AI SSA and one-tap arming and disarming.
> SMD area can be set in warm light areas that support triggering alarms.
> Field of View: 109°

Description

> 8-MP 1/1.8 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 ×2160)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 50 m
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual MICs; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply.
> IP67 protection.
> Sound and light alarm (red and blue lights).
> SMD 4.0.
> Supports AI SSA and one-tap arming and disarming.
> SMD area can be set in warm light areas that support triggering alarms.
> Field of View: 109°

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/TiOC-PRO-WizColor/IPC-HFW3849T1-AS-PV-PRO

Category Code

FNC

Alarm In

1

Alarm Out

1

Audio-In

1

Audio-Out

1

RJ45

1

Model

HFW3849T1-ASPV0280B-PRO-B

Camera design

Bullet

Network Camera Type

HDTV/Megapixel/Outdoor

Resolution

8 Mega Pixel

Focal Length

2.8mm

IR Illumination

Yes

Sensor size

1/1.8

Microphone

Built-in

Lens Mount

M16

Min. Illumination

0.0002 Lux

Effective pixels

3840 (H) × 2160 (V)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Supports card capacities up to

512GB

Power options

12V/PoE

Power supply requirements

12 VDC/PoE+ (802.3at)

Power consumption

15.1 Watts

Environment

Outdoor

Operating temperature range

–40 °C to +60 °C

Colour

Black

Dimensions

288.4 × 94.4 × 84.7mm

Units per Shipping Box

1

Unit Calculated Volume

0.01118 cubm

Product Net Weight

1 kg

Unit Calculated Weight

1.3 kg
