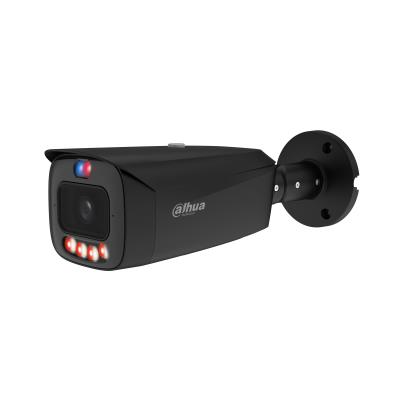

NET CAMERA 8MP BULLET/HFW3849T1-ASPV0360BPRO-B DAHUA

IPC-HFW3849T1-AS-PV-PRO

> 8-MP 1/1.8 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 ×2160)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 50 m · ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human), stay detection, loitering detection, face detection (full image).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual MICs; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply.
> IP67 protection.
> Sound and light alarm (red and blue lights).
> SMD 4.0.
> Supports AI SSA and one-tap arming and disarming.
> SMD area can be set in warm light areas that support triggering alarms.
> Focal Length: 3.6 mm
> Field of View: 93°

Description

IPC-HFW3849T1-AS-PV-PRO

> 8-MP 1/1.8 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 ×2160)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 50 m · ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human), stay detection, loitering detection, face detection (full image).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual MICs; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply.
> IP67 protection.
> Sound and light alarm (red and blue lights).
> SMD 4.0.
> Supports AI SSA and one-tap arming and disarming.
> SMD area can be set in warm light areas that support triggering alarms.
> Focal Length: 3.6 mm
> Field of View: 93°

Vendor Homepage

https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/TiOC-PRO-WizColor/IPC-HFW3849T1-AS-PV-PRO

Category Code

FNC

RJ45

1

Аудио вход

1

Аудио выход

1

Слот MicroSD карты

1

Тревожный вход

1

Тревожный выход

1

Модель

HFW3849T1-ASPV0360BPRO-B

Дизайн

Bullet

Тип устройства

Fixed/HDTV/Megapixel/Outdoor

Разрешение

3840 (H) × 2160 (V)

Фокусное расстояние

2.8 mm;3.6 mm

Инфракрасная подсветка

Да

Матрица

1/1.8 CMOS

Микрофон

Да

Крепление объектива

M16

Минимальное освещение

0.0002 лк

Скорость электронного затвора

Auto/Manual 1/3 s–1/100,000 s

Поддерживает емкость карты до

512GB

Требования к электропитанию

12 VDC/PoE+ (802.3at)

Потребляемая мощность

15.1 Вт

Тип

Уличная

Диапазон рабочих температур

–40 °C to +60 °C

Цвет

Черный

Размер

288.4 mm × 94.4 mm × 84.7 mm

Объем

0.006655 м3

Вес без упаковки

1 кг

Вес в упаковке

1.47 кг
