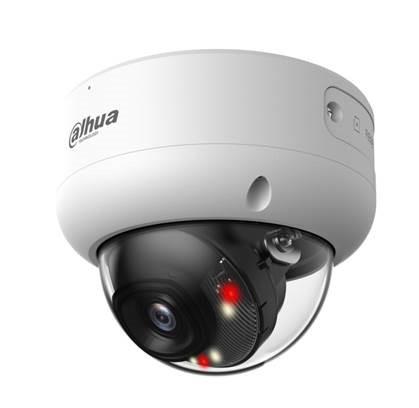

NET CAMERA 8MP DOME/HDBW3849E-AS-IL-0280B DAHUA

> 8-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 2160)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED and warm light , the max. IR illumination distance is 30 m and the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection; face detection (full image).
> Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in Mic.
> 12 VDC/PoE power supply.
> IP67 and IK10 protection.
> SMD 4.0.
> Supports AI SSA.
> SMD area can be set in warm light areas that support triggering alarms.
> Focal Length 2.8 mm. Field of View 110°

Description

> 8-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 2160)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED and warm light , the max. IR illumination distance is 30 m and the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection; face detection (full image).
> Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in Mic.
> 12 VDC/PoE power supply.
> IP67 and IK10 protection.
> SMD 4.0.
> Supports AI SSA.
> SMD area can be set in warm light areas that support triggering alarms.
> Focal Length 2.8 mm. Field of View 110°

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/Smart-Dual-Light/IPC-HDBW3849E-AS-IL

Category Code

FNC

Unit Box Height

0.135

Unit Box Length

0.135

Unit Box Width

0.125

Аудио вход

1

Аудио выход

1

RJ45

1

Тревожный вход

1

Тревожный выход

1

Дизайн

Dome

Тип устройства

Fixed Dome/HDTV/Megapixel/Outdoor

Разрешение

3840 (H) 2160 (V)

Фокусное расстояние

2.8 mm

Инфракрасная подсветка

Да

Матрица

1/2.7

Микрофон

Да

Крепление объектива

M12

Минимальное освещение

0.0007 лк

Скорость электронного затвора

Auto/Manual 1/3 s1/100,000 s

Поддерживает емкость карты до

512GB

Параметры питания

12V/PoE

Требования к электропитанию

12 VDC/PoE (802.3af)

Потребляемая мощность

8.2 Вт

Тип

Уличная

Диапазон рабочих температур

-40 C to +60 C

Цвет

Белый

Размер

89.1 mm 111.7 mm

Количество в палете

0

Количество в транспортной упаковке

1

Объем

0.002278 м3

Вес без упаковки

0.528 кг

Вес в упаковке

0.724 кг
