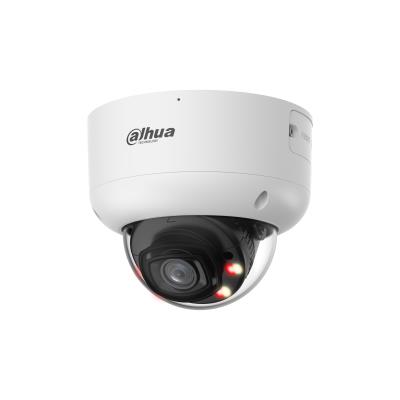

NET CAMERA 8MP DOME/HDBW5859R1ASEPV0280BPRO DAHUA

8MP WizColor Fixed-focal Dome WizMind Network Camera
> 8-MP 1/1.8 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160) @25/30 fps.
> Built-in multi-core light, the max. IR distance is 60 m and the max. warm light distance is 50 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Powered by the Xinghan Large-Scale AI Models-Vision, the camera outstandingly delivers on its object detection, recognition, and scene adaptation functions.
> With deep learning algorithm, it supports: AcuPick, video metadata, IVS, face detection, and people counting, etc.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; RS-485; supports max. 1 TB Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply; ePoE; 12 VDC power output, and max. current 165mA, easy for installation.
> IP67 and IK10 protection.
> 2.8 mm (109°)

Description

8MP WizColor Fixed-focal Dome WizMind Network Camera
> 8-MP 1/1.8 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160) @25/30 fps.
> Built-in multi-core light, the max. IR distance is 60 m and the max. warm light distance is 50 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Powered by the Xinghan Large-Scale AI Models-Vision, the camera outstandingly delivers on its object detection, recognition, and scene adaptation functions.
> With deep learning algorithm, it supports: AcuPick, video metadata, IVS, face detection, and people counting, etc.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; RS-485; supports max. 1 TB Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply; ePoE; 12 VDC power output, and max. current 165mA, easy for installation.
> IP67 and IK10 protection.
> 2.8 mm (109°)

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/Smart-Dual-Light/IPC-HDBW3649R-ZAS-IL

Category Code

FNC

RJ45

1

Аудио вход

1

Аудио выход

1

Наличие RS-485

1

Тревожный вход

1

Тревожный выход

1

Модель

IPC-HDBW5859R1-ASE-PV-PRO

Дизайн

Dome

Тип устройства

Fixed Dome/HDTV/Megapixel/Outdoor

Разрешение

3840 (H) × 2160 (V)

Фокусное расстояние

2.8 mm; 3.6 mm

Инфракрасная подсветка

Да

Матрица

1/1.8 CMOS

Микрофон

Да

Минимальное освещение

0.0005 лк

Скорость электронного затвора

Auto/Manual 1/3 s–1/100,000 s

Поддерживает емкость карты до

1TB

Параметры питания

12V/PoE

Требования к электропитанию

12 VDC (±30%); PoE+ (802.3at); ePoE

Потребляемая мощность

23.9 Вт

Тип

Уличная

Диапазон рабочих температур

-40 C to +60 C

Размер

105.0 mm × Φ126.0 mm

Количество в палете

0

Количество в транспортной упаковке

1

Объем

0.002352 м3

Вес без упаковки

0.56 кг

Вес в упаковке

0.532 кг
