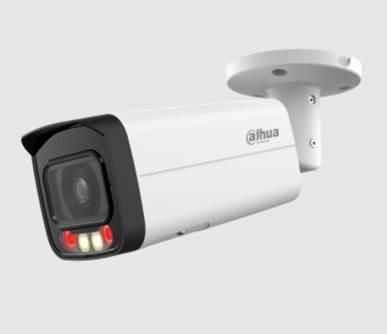

NET CAMERA 8MP IR BULLET/IPC-HFW2849T-AS-IL-0360B DAHUA

8MP Smart Dual Light Fixed-focal Bullet WizSense Network Camera

> 8-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160) @20 fps, and supports 2688×1520 (2688 × 1520) @25/30 fps..
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light and IR LED, the max. IR light distance is 60 m and max. warm light is 50 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/PoE power supply, easy for installation.
> IP67, IK10 (optional) protection.
> SMD Plus.

Description

8MP Smart Dual Light Fixed-focal Bullet WizSense Network Camera

> 8-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160) @20 fps, and supports 2688×1520 (2688 × 1520) @25/30 fps..
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light and IR LED, the max. IR light distance is 60 m and max. warm light is 50 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/PoE power supply, easy for installation.
> IP67, IK10 (optional) protection.
> SMD Plus.

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Light/IPC-HFW2849T-AS-IL

Model

IPC-HFW2849T-AS-IL-0360B

Network Camera Type

Fixed/HDTV/Megapixel/Outdoor

Pixel Resolution

8 Mega Pixel

Focal Length

3.6 mm; 6 mm

IR Illumination

Yes

Sensor size

1/2.7 CMOS

Microphone

Built-in

Lens Mount

M12

Min. Illumination

0.0008 Lux

Effective pixels

3840 (H) × 2160 (V)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Supports card capacities up to

256GB

Power options

12V/PoE

Power supply requirements

12 VDC/PoE (802.3af)

Environment

Outdoor

Operating temperature range

–40 °C to +60 °C

Dimensions

238.5 × 90.7 × 90.7 mm

Units per Shipping Box

1

Shipping Box Depth

31 cm

Shipping Box Height

14.5 cm

Shipping Box Weight

0.98 kg

Shipping Box Width

15.5 cm

Unit Calculated Volume

0.006967 cubm

Product Net Weight

0.72 kg

Unit Calculated Weight

0.98 kg

Unit Box Width

0.155

Unit Box Length

0.31

Unit Box Height

0.145

Full Description Line

Type Fixed/HDTV/Megapixel/Outdoor|Pixel Resolution 8 Mega Pixel|Focal Length 3.6 mm; 6 mm|IR Illumination|Sensor size 1/2.7 CMOS|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0008 Lux|Effective pixels 3840 (H) × 2160 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12 VDC/PoE (802.3af)|Environment Outdoor|Operating temperature range –40 °C to +60 °C|Dimensions 238.5 × 90.7 × 90.7 mm
