NET CAMERA 8MP IR BULLET/IPCHFW5842E-ASE-0280B-S3 DAHUA

IPC-HFW5842E-ASE-S3

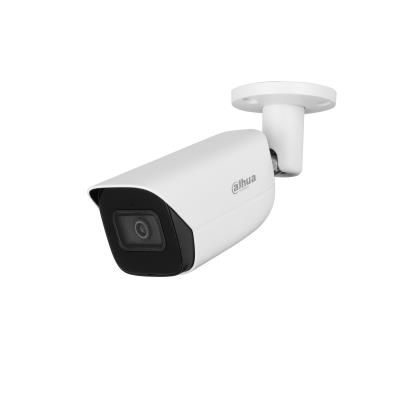

8MP IR Fixed-focal Bullet WizMind Network Camera

> 8-MP 1/1.8 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840×2160) @25/30fps.
> Built-in IR LED, and the max. illumination distance is 50 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card, built-in MIC.
> 12 VDC/PoE power supply; ePoE.
> IP67 protection.
> SMD 3.0.

Description

IPC-HFW5842E-ASE-S3

8MP IR Fixed-focal Bullet WizMind Network Camera

> 8-MP 1/1.8 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840×2160) @25/30fps.
> Built-in IR LED, and the max. illumination distance is 50 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card, built-in MIC.
> 12 VDC/PoE power supply; ePoE.
> IP67 protection.
> SMD 3.0.

Vendor Homepage

www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizMind-S-Series/8MP/IPC-HFW5842E-ASE-S3=S3

Model

IPC-HFW5842E-ASE-S3

Camera design

Bullet

Network Camera Type

HDTV/Megapixel/Outdoor

Pixel Resolution

8 Mega Pixel

Focal Length

2.8 mm; 3.6 mm; 6 mm

IR Illumination

Yes

Sensor size

1/1.8 CMOS

Microphone

Built-in

Lens Mount

M12

Min. Illumination

0.0004 Lux

Effective pixels

3840 (H) × 2160 (V)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Alarm In

1

Alarm Out

1

Audio-In

1

Audio-Out

1

MicroSD Card Slot

1

RJ45

1

Supports card capacities up to

1TB

Power options

12V/PoE

Power supply requirements

12 VDC/PoE (802.3af)/ePoE

Environment

Outdoor

Operating temperature range

–40 °C to +60 °C

Colour

White

Dimensions

192.7 mm × 70.5 mm × 66.4 mm

Units per Shipping Box

1

Shipping Box Depth

22 cm

Shipping Box Height

11.5 cm

Shipping Box Weight

0.765 kg

Shipping Box Width

10 cm

Unit Calculated Volume

0.00253 cubm

Product Net Weight

0.59 kg

Unit Calculated Weight

0.765 kg

CnCode

85258900

Unit Box Width

0.1

Unit Box Length

0.22

Unit Box Height

0.115

Full Description Line

Type HDTV/Megapixel/Outdoor|Pixel Resolution 8 Mega Pixel|Focal Length 2.8 mm; 3.6 mm; 6 mm|IR Illumination|Sensor size 1/1.8 CMOS|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0004 Lux|Effective pixels 3840 (H) × 2160 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xMicroSD Card Slot|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 1TB|Power options PoE/12V|Power supply requirements 12 VDC/PoE (802.3af)/ePoE|Environment Outdoor|Operating temperature range –40 °C to +60 °C|Colour White|Dimensions 192.7 mm × 70.5 mm × 66.4 mm
