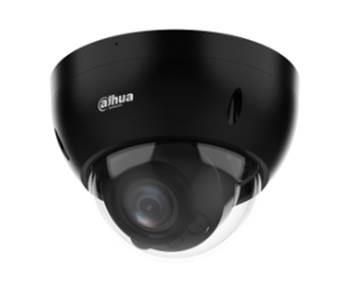

NET CAMERA 8MP IR DOME/HDBW2841R-ZAS-27135-B DAHUA

8MP IR Vari-focal Dome WizSense Network Camera
> 8-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160) @20 fps, and supports 2688 ×1520 (2688 × 1520) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out (Only - ZAS supports); supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/PoE power supply, easy for installation.
> IP67, IK10 protection.
> SMD Plus.

Description

8MP IR Vari-focal Dome WizSense Network Camera
> 8-MP 1/2.7 CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160) @20 fps, and supports 2688 ×1520 (2688 × 1520) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out (Only - ZAS supports); supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/PoE power supply, easy for installation.
> IP67, IK10 protection.
> SMD Plus.

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/8MP/IPC-HDBW2841R-ZAS

Model

IPC-HDBW2841R-ZAS-27135-B

Camera design

Dome

Network Camera Type

Fixed Dome/HDTV/Megapixel/Outdoor

Pixel Resolution

8 Mega Pixel

Focal Length

2.7 mm–13.5 mm

IR Illumination

Yes

Sensor size

1/2.7

Microphone

Built-in

Lens Mount

M14

Min. Illumination

0.0008 Lux

Effective pixels

3840 (H) × 2160 (V)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Alarm In

1

Alarm Out

1

Audio-In

1

Audio-Out

1

RJ45

1

Supports card capacities up to

256GB

Power options

12V/PoE

Power supply requirements

12 VDC/PoE (802.3af)

Power consumption

3.4 Watts

Environment

Outdoor

Operating temperature range

–30 °C to +60 °C

Colour

Black

Dimensions

93.4 mm × Φ122 mm

Units per Shipping Box

1

Shipping Box Depth

15.8 cm

Shipping Box Height

13.5 cm

Shipping Box Weight

0.7 kg

Shipping Box Width

15.6 cm

Unit Calculated Volume

0.003327 cubm

Product Net Weight

0.51 kg

Unit Calculated Weight

0.7 kg

Unit Box Width

0.156

Unit Box Length

0.158

Unit Box Height

0.135

Full Description Line

Type Fixed Dome/HDTV/Megapixel/Outdoor|Pixel Resolution 8 Mega Pixel|Focal Length 2.7 mm–13.5 mm|IR Illumination|Sensor size 1/2.7|Microphone Built-in|Lens Mount M14|Min. Illumination 0.0008 Lux|Effective pixels 3840 (H) × 2160 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12 VDC/PoE (802.3af)|Environment Outdoor|Operating temperature range –30 °C to +60 °C|Colour Black|Dimensions 93.4 mm × Φ122 mm

Category Code

FNC
